Name: Drive Bariatric Sentra Extra Heavy-Duty Wheelchair
Brand: DRIVE MEDICAL
SKU: 37572
Price: 731.619995117188 USD
Availability: InStock

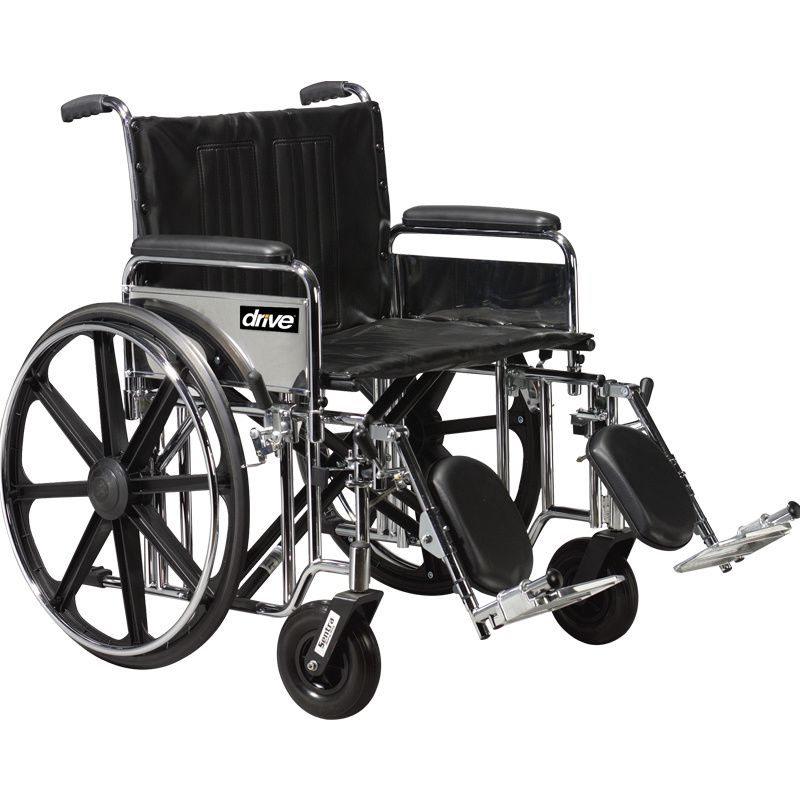

Drive Bariatric Sentra Extra Heavy-Duty Wheelchair

Brand/Manufacturer: DRIVE MEDICAL

FSA Approved

Drive Bariatric Sentra Extra Heavy-Duty Wheelchair boasts a 500-pound weight capacity, made possible through the use of reinforced steel gussets, heavy gauge reinforced Naugahyde upholstery, reinforced side frame, caster journals, and dual cross bars. The stylish triple coated chrome frame, made of carbon steel, adds a touch of elegance to this bariatric wheelchair. It comes with detachable desk arms.

Item #	Desc	Pkg	Price
STD20DDA-ELR	20" Seat : Swing Away Elevating Legs	Each	$914.53 $731.62
STD22DDA-ELR	22" Seat : Swing Away Elevating Legs	Each	$900.67 $720.53
STD24DDA-ELR	24" Seat : Swing Away Elevating Legs	Each	$900.67 $720.53
STD20DDA-SF	20" Seat : Swing Away Footrests	Each	$872.97 $698.37
STD22DDA-SF	22" Seat : Swing Away Footrests	Each	$845.24 $676.19
STD24DDA-SF	24" Seat : Swing Away Footrests	Each	$928.39 $742.71

Features

Drive Bariatric Sentra Extra Heavy-Duty Wheelchair comes with push to lock wheel locks
Aluminum footplates are attractive, crack-proof and lightweight
Carbon steel frame with TRIPLE coated chrome for an attractive, chip-proof, maintainable finish
Comes standard with carry pocket on back rest
Composite Mag-style wheels with chrome hand rim are lightweight and maintenance free
Dual position front fork
Dual position front frame
Durable, heavy gauge, reinforced Naugahyde upholstery
Padded armrests provide added patient comfort
Precision sealed wheel bearings in front and rear ensure long lasting performance and reliability
Reinforced side frame, caster journals, and dual cross bars
Reinforced steel gussets at all weight bearing points provide additional strength
Click here for user manual

More Information

Use and Safety:
- Wheel Locks: Engage both wheel locks before getting in or out of the chair, leaning forward in a chair, or while in an elevator or wheelchair lift. Proper adjustment of wheel lock is at least 1/8" when locked. Locks are engaged by pushing handle completely forward. Adjustments to locks are made by loosening or tightening the nut on the carriage bolt. Embed lock shoe at least 1/8" by sliding clamp toward rear wheel while the handle is engaged in locked position. Tighten nut and bolt to secure in position. Test for correct locking action before actual use.
- Tires: Solid rubber tires need minimal maintenance, but should be cleaned occasionally with a damp cloth. Replace if tires become severely worn or cracking appears.
- Front Casters: Casters should be checked periodically and lubricated occasionally. Lubricate by removing the fork and greasing caster stem bearings. Lubricate wheel bearings by removing the wheel from the fork. Reassemble fork and wheel by tightening nuts until no play remains, but wheels roll freely. If the nut is too loose, the caster will shimmy, if too tight, the chair will be hard to steer.
- Removal of Swing-away Footrests/Leg rests: Release lock by pushing on the front rigging lever. Swing-away foot rest /leg rest out and sideways. Lift to remove.
- Adjusting Length of Footrest/Leg rest: When adjusting the length of foot rests or leg rests, the user should be sitting in a wheelchair with feet on the foot plates. Loosen bolt on the clamp around support assembly. Raise or lower foot plate to the desired position that will provide maximum support for thighs. Front rigging should not be so low that it causes uncomfortable pressure to thighs at front of seat upholstery. The footrest should not be lower than 2-1/2" from the ground to ensure clearance.
- Adjusting/Elevating Leg rest Lift foot plate on leg rest assembly to the desired position. Release leg rest assembly and it will automatically lock into place. To lower, push out on leg rest lever and lower foot plate to the desired position.
- Wheels: Large rear wheels should be inspected at least once a month to ensure proper tightness. If wheel wobbles or is loose, release lock nut and tighten axle bolt slightly. Test for proper tightness by learning chair to one side and spin the adjusted wheel.
- General Care: Wipe chrome parts with a clean, soft cloth at least once a week. All metal parts can be cleaned with auto wax or similar products. If exposed to moisture, dry immediately. Do not use an abrasive cleanser that will scratch the finish.
- To Open Chair: Open wheelchair by tilting to one side and pushing down on seat rail until fully opened.
- To Close/Fold Chair: First, fold foot plates to a vertical position. Grab a seat with both hands at front and back edge and lift. Or, tilt chair to one side and lift up on seat rail.
- Removable Arms: Remove arms by depressing spring button and lifting arms out of the front and rear sockets.
Warning:
Do not attempt to adjust or operate wheelchair without reading carefully all instructions in this manual.
- This wheelchair has not been approved as a seat that can be used within vehicles of any kind. Always transfer wheelchair user to a vehicle manufacturers approved seat and use safety restraints available
- Do not operate this wheelchair on roadways, streets or any surfaces with
vehicular traffic
- Do not attempt to operate on inclines 10% or greater without proper
assistance
- Be sure to completely engage wheel locks when getting in and out of
wheelchair or when in an elevator or wheelchair lift
- Wheelchair should be on a smooth, stable and level area with wheel locks
engaged in transferring user in or out of the wheelchair
- Do not adjust foot rests any lower than 2.5 from floor
- When getting in or out of wheelchair, do not stand on or apply weight to foot
rests
- Before reaching or leaning forward, rotate casters to front of the wheelchair
engage wheel locks to help prevent the wheelchair from tipping over
- Do not lean over or apply weight to the top of wheelchair back. This can
cause wheelchair to tip over. When trying to extend arms over back, only
reach as far as your arm can extend without having to alter your seating
position
- Do not stand on wheelchair
- Do not use wheel locks to slow your descent down an incline
- Abruptly changing directions while going down an incline could cause
instability or possible tipping over
Caution:
Stability:
- Wheelchair is designed to be safe and stable as long as center of gravity is maintained while going about normal activities
- Care must be taken while performing activities that shift your center of gravity in the chair
- Never reach so far that require you to shift in the seat or bend over out of the chair
- When you have to reach for objects that require you to lean, be certain front casters are pointing in a forward position that extends the wheel base and will stabilize the chair
Ramps:
- Be sure of your own capabilities, limitations and strength before attempting to go up a ramp
- Correct techniques on ramp negotiation should be shown to you by a qualified professional
- Assistance is recommended when going up or down inclines greater than 10 degree
- If you must stop on an incline, avoid sudden, abrupt movement when you resume movement
- Because of backward angle of the chair, sudden abrupt movement could cause instability
- Attempting to use the wheel lock brakes could result in accidental locking, tipping to one side, or cause a sudden stop
- Avoid changing direction when going down an incline, as this could result in instability of tipping over

Specification

Particulars	Specifications
Width (open)	29"
Width (closed)	13"
Height	37"
Seat to Floor Height	17.5" to 19.5"
Back Height	18"
Seat Width	20",22",24"
Seat Depth	18"
Length with Riggings	42"
Weight	54lb
Weight Limit	500lb

Warranty

Limited Lifetime Warranty
