Detecto MedVue Digital Weight Analyzer

Name: Detecto MedVue Digital Weight Analyzer
Brand: DETECTO
SKU: 28965
Price: 888.673706054688 USD
Availability: InStock

Brand/Manufacturer: DETECTO

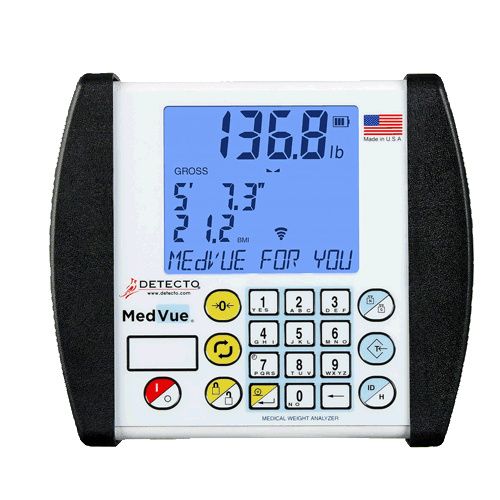

Detecto MedVue Digital Weight Analyzer features a striking blue backlit LCD display screen with nearly one inch high weight digit readouts for easy visibility. Its 350 degrees swivel mounting bracket allows the display to be tilted and rotated into position wherever it is the most convenient for the medical professional or patient to view. MedVue offers a host of both wired and optional wireless connectivity for sending measurement data to multiple devices all at once.

Item #	Desc	Pkg	Price	Price
MV1	6.75"H x 7.63"W x 1.75"D	Each	$1199.66 $888.67

Features

Detecto MedVue Digital Weight Analyzer connect with:
- Printers
- PCs
- Networks
- Tablets
- Bar Code Scanners
- Mobile Phones
Provides complete weight analysis with BMI
Adjustable, large, backlit LCD displays weight, height, BMI, and 14-digit patient ID
14-digit patient ID which may be entered via the alphanumeric keypad
99 stored tare weights and 200 stored transactions
Alphanumeric keyboard with weight-unit switch button
Compact, lightweight and sturdy steel construction
EMR or EHR connectivity, and metric conversion
Auto shut-off feature or USB device port
Selectable sleep-mode and serial I or O (input or output)
Selectable filtering
Offers optional Wi-Fi connectivity with up to 20 ft. range (varies depending upon environmental conditions).
Powered by 6 AA batteries (not included)
LCD display size: 3.5"W x 3"H
Multiple languages setting:
- English
- Spanish
- French
- German
Operation Manual
Owners Manual

More Information

Easy Set-Up Navigation:
- MedVue indicator features a tiered menu system with up or down navigation controls to quickly update any settings you wish to change, such as converting to kilograms-only weighing or lowering the backlight intensity to make the batteries last longer.
Versatile Connectivity:

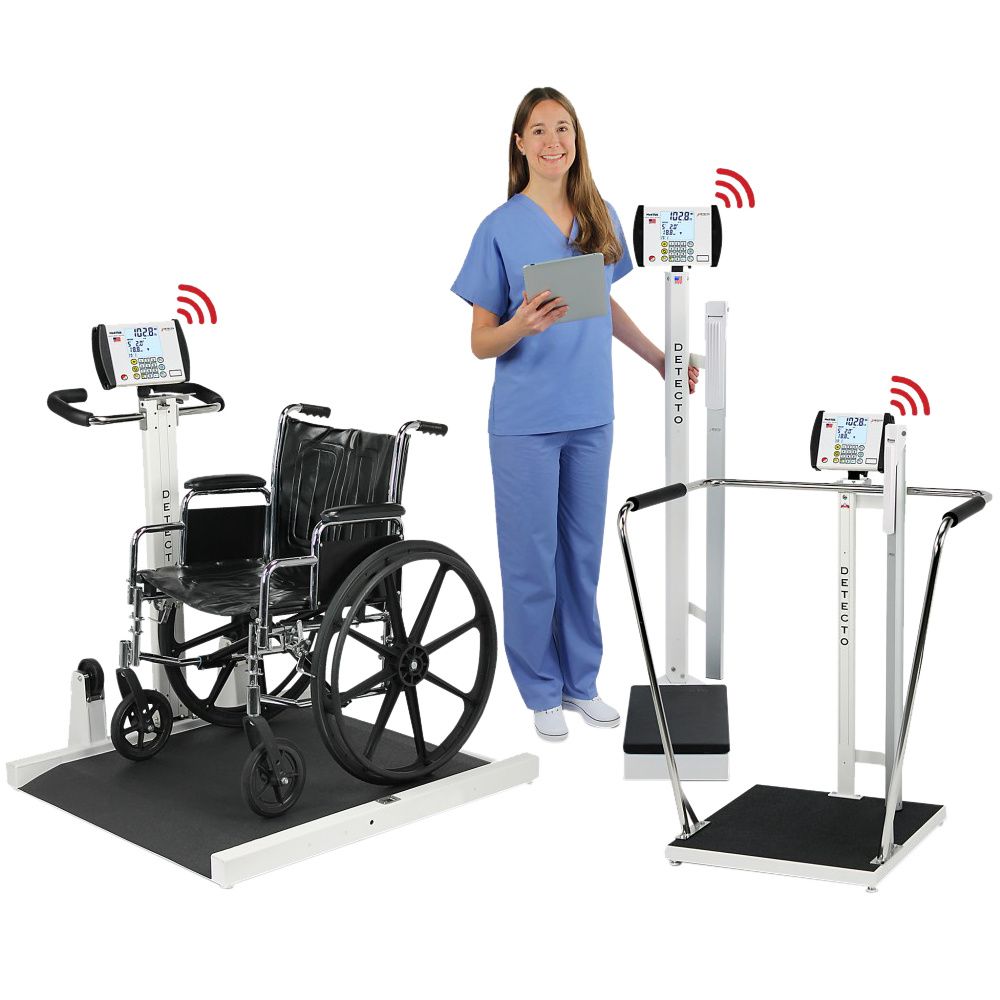

- MedVue medical weight analyzer offers a host of different options, both wired and optional wireless, for DETECTO scales to connect with multiple devices for efficient EMR/EHR.
Connect with:
- Printers
- PCs
- Networks
- Tablets
- Bar code scanners
- Even mobile phones

Specification

Particulars	Specifications
Construction	Painted steel
Keyboard	Membrane type with 19 keys
Sensitivity	0.5 uV/division (0 to 3.0 mV/V), Class III
Operating Temperature	14 to 104 ºF (-10 to +40 ºC)
Signal Input Range	0 to 15mV max
Transducer Excitation	5.0 VDC
Number of Load Cells	Up to 4 each 350 O
Load Cell Cable Length	30 feet (9 meters) max
Resolution	10,000 divisions
Capacities	Weight: 10,000 divisions commercial - Height: 0 - 9; 11.9
NTEP	Certificate of Conformance Number 13-011
Power Requirements	6 “C” cell Alkaline, Ni-Cad or NiMH batteries (not included) OR an optional 12 VDC 1.25A wall plug-in AC power adapter (Detecto part number MV1PWR)
Display	Overall Display Size: 3.5 inch W x 3 inch H (89 mm W x 76 mm H) backlit blue LCD Weight: 5 digit, seven segment, 0.875 inch (22.23 mm) high LCD Height: 4 digit, seven segment, 0.5 inch (12.7 mm) high LCD BMI: 3 digit, seven segment, 0.5 inch (12.7 mm) high LCD ID: 14 digit, 14 segment, 0.35 inch (8.89 mm) high LCD
Battery Life	7,560 weighments (with backlight fully ON) / 10,620 weighments (with backlight fully OFF)1
Weighing Units	Pounds (lb), Pounds/Kilograms (lb/kg), Kilograms (kg) and Kilograms/Pounds (kg/lb)
Division Value	1, 2 or 5 x 1, 0.1, 0.01, 0.001
Sample Rate	1 to 100 samples per second selectable
Enclosure Size	9.8 inch W x 6.8 inch H x 1.8 inch D (248.9 mm W x 172.7 mm H x 45.7 mm D)
Auto Zero Range	0.5 or 1 through 9 divisions

Warranty

6 months warranty
