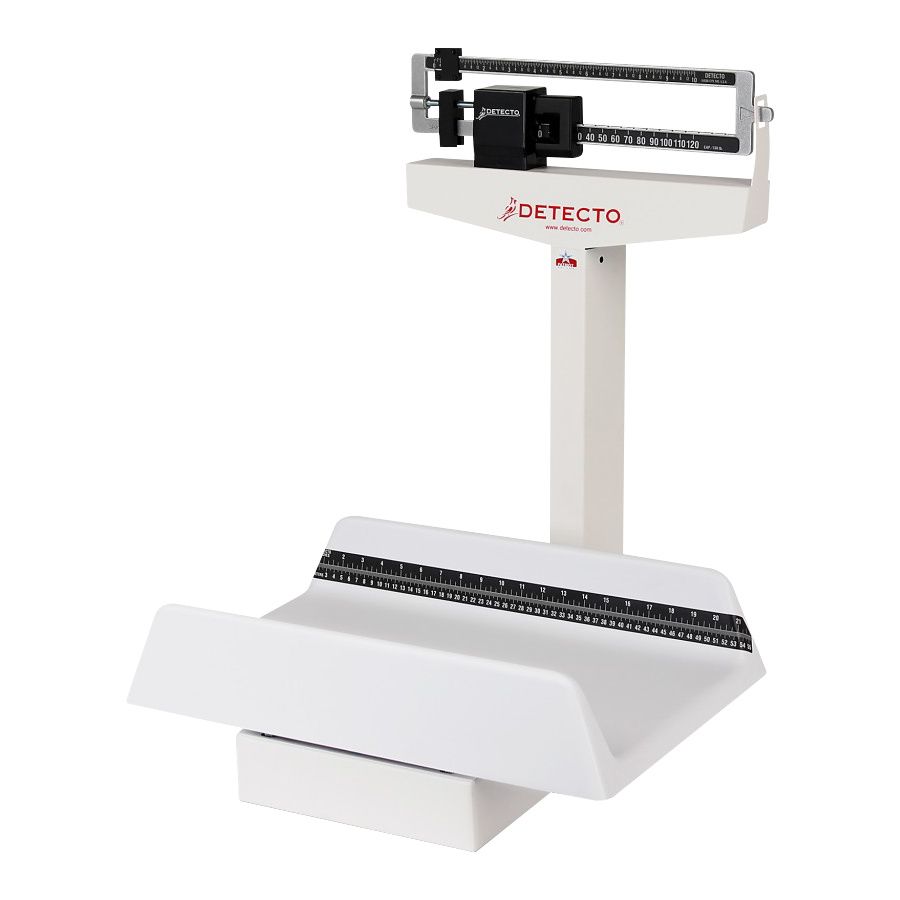

Detecto Mechanical Pediatric Scale

Detecto Mechanical Pediatric Scale

Brand/Manufacturer: DETECTO

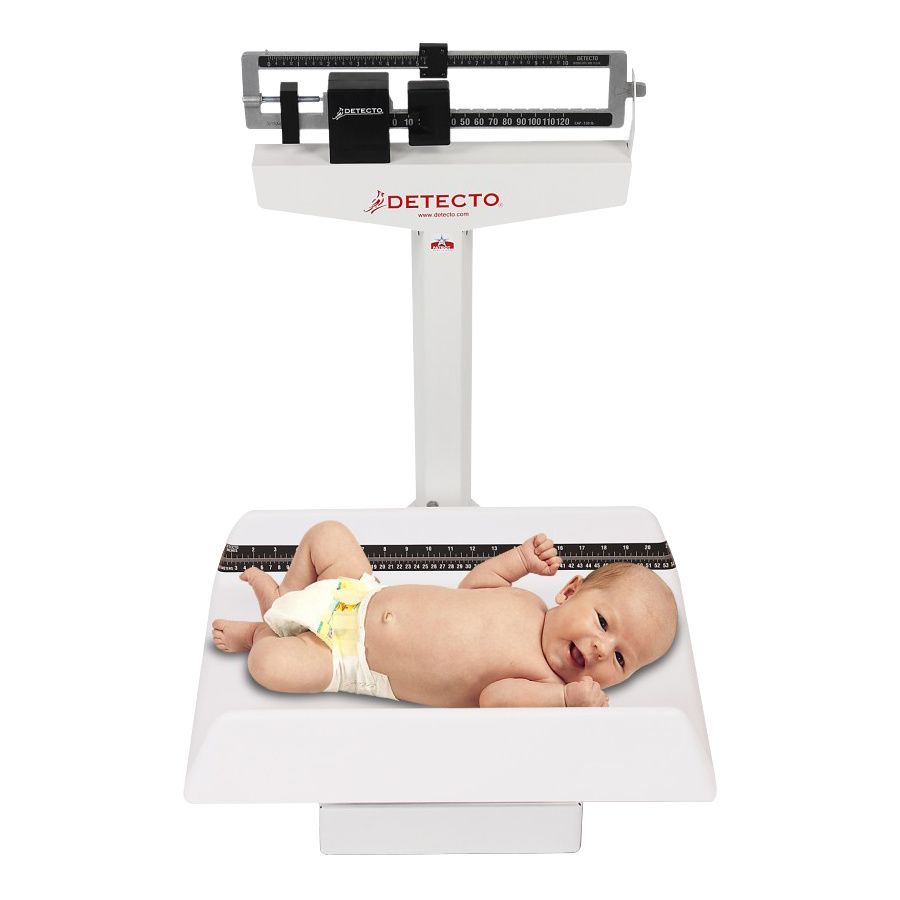

Detecto Mechanical Pediatric Scale provide the ultimate in safety for pediatric patients while also utilizing the time-tested, reliable DETECTO weigh beam for highly-accurate measurement. There is no electricity required, making them ideal for remote clinics and pediatrician offices. The easy-to-clean polystyrene tray cradles babies securely on these dependable pediatric scales. The heavy-duty steel base provides patient assurance while weighing. A built-in measuring tape (up to 21 in / 53 cm) allows the healthcare professional to measure both weight and height simultaneously.

Item # Desc Pkg Price
450 Weighbeam, Tray, Capacity: 130 lb x 1 oz Each
451 Weighbeam, Tray, Capacity: 65 kg x 20 g Each


  • Detecto Mechanical Pediatric Scale has heavy steel base and precision lever system
  • Light-weight and attractive
  • Reliable and accurate
  • Compact footprint

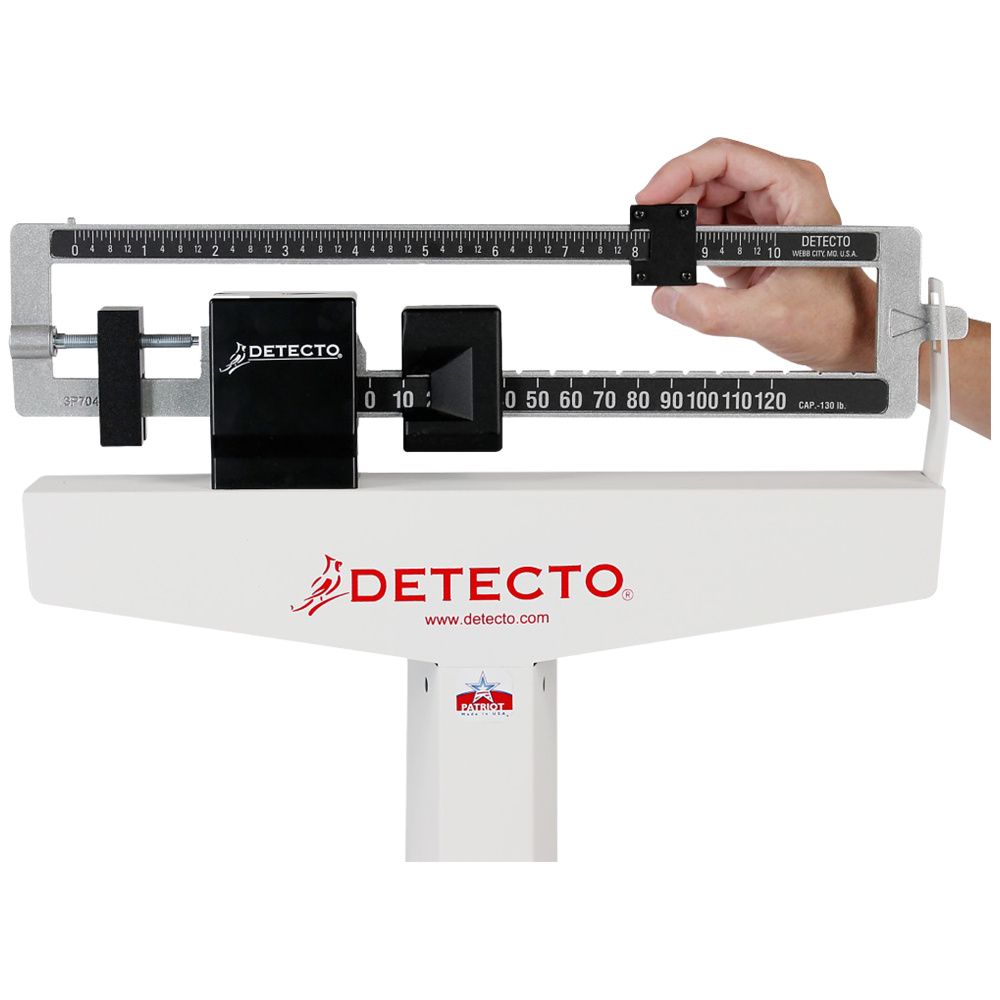

  • Easy-to-read, dual-reading, die-cast beams viewable from either side of the scale
  • Easy-to-clean polystyrene trays
  • Comfortable, polystyrene weighing tray
  • Information Guide
  • Instruction Manual

More Information

  • Instructions:
    1. Carefully unpack scale components from carton and note any discrepancies in their condition.
    2. Slip column over column bracket on base platform making certain that draft rod in column enters cutout in base connector. Fasten column to base platform using (6) 1/4 x 20 truss head screws and split lock washers provided.
    3. Lay scale on table top with platform base pointing down and column horizontal to floor. With draft rod hook held upward, push lever inward towards column then slip draft rod hook onto lever loop.
    4. Attach baby tray to scale platform using the two (2) flat head screws provided. Do not over-tighten screws.
    5. To balance scale, place scale on a level, stable location. Move both poises to zero and turn balance screw on left end of beam, in or out as required until beam balances at mid-point on trig loop


 Particulars          Specification
 Tray Dimensions  22"H x 14.75"W x 4.5"D (559mmH x 375mmW x 114mmD)
 Measuring Tape  0-21 in/0-53 cm
 Dimensions  27"H x 22"W x 21"D (686mmH x 559mmW x 533mmD)
 Beam  Dual-reading, die-cast
