Detecto Digital Patient Lift Scales

Detecto Digital Patient Lift Scales

Brand/Manufacturer: DETECTO

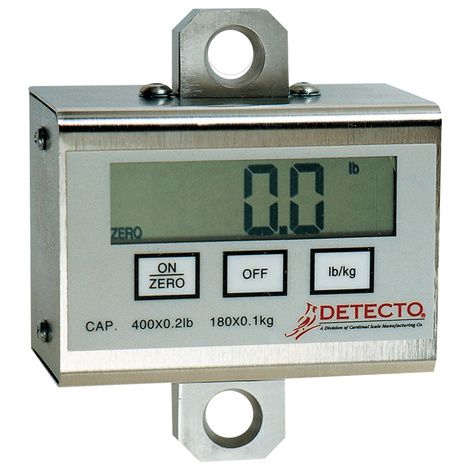

Detecto Digital Patient Lift Scale is a completely self-contained instrument that determines the weight of a person suspended from a portable patient lift mechanism. The indicator incorporates a lock-weight feature which stores the last weight reading when the unit is turned off and can be used where standard indicators are too large and cumbersome.

Item # Desc Pkg Price
PL400 Weight Capacity: 400lbs x .2lb (180kg x .1kg) Each
PL600 Weight Capacity: 600lbs x .2lb (270kg x .1kg) Each


  • Detecto Digital Patient Lift Scales Operate on only one 9V Alkaline battery (not included) with an automatic shut-off
  • Battery power is saved due to the automatic shut-off feature
  • Membrane keypad with only three keys: ON/ZERO, OFF and LB/KG
  • Easy to set up and operate so the procedure is quickly learned
  • Supplied with two spring “O” rings
  • Owners Manual - PL400
  • Owners Manual - PL600

More Information

  • Installation:
    - Remove the instrument from the shipping carton and inspect it for any signs of damage that might have taken place during shipment such as exterior dents and scratches.
    - Install the battery.
    - Place the indicator on the hook of the patient lift mechanism.
    - The indicator is now ready for use
  • Battery Replacement:
    - To install the battery, turn the indicator so that the display is facing down (away from you) and resting on the keypad.
    - Locate the rectangular panel on the back of the indicator and remove the thumbscrew retaining it.
    - Remove the panel exposing the battery holder.
    - Install the 9 volt battery in the holder, making certain it is positioned in accordance with the polarity markings located in the battery holder.


Particulars Specifications
Power Source  One 9V battery (not included)
Keypad Controls  On/zero, off, and lb/kg display select
Resolution 0.2 lb (0.1kg)
Temperature Range: 50° to 104° F (+10° to +40° C)
Display .75" (19mm) high-contrast LCD with annunciator for lb/kg, zero, low battery and display lock
Size  4.125"W x 2.125"D x 4"H (104mmW x 54mmD x 102mmH)
(center of eye to center of eye: 5" overall - 127 mm)
