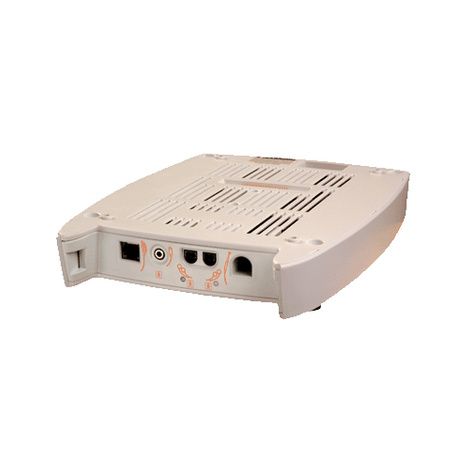

Chattanooga Intelect Legend XT Channel 3 and 4 Electrotherapy Module

Name: Chattanooga Intelect Legend XT Channel 3 and 4 Electrotherapy Module
Brand: CHATTANOOGA GROUP
SKU: 12051
Price: 1062.09 USD
Availability: InStock

Brand/Manufacturer: CHATTANOOGA GROUP

Chattanooga Intelect Legend XT Channel 3 and 4 Electrotherapy Module consolidates upto six therapeutic modalities in one system, at a fraction of what these modalities would cost alone. Unique modular design lets you choose what fits best in your clinical setting now or easily add to later without the replacement of products.

Item# 2781

Size Chart

Features

Chattanooga Intelect Legend XT Channel 3 and 4 Electrotherapy Module is ideal for the growing clinic or the clinician on a budget
Color-coded front access panel that hides excessive connections and lead wires
Upgrade therapy unit to 4 independent channels available from 2 channels
Can be used as an accessory with following models:
- Chattanooga Intelect Legend XT 2 Channel Combination System (Code: 2760)
- Chattanooga Intelect Legend XT 2 Channel Electrotherapy System (Code: 2763)
- Chattanooga Intelect Legend XT 4 Channel Combination System (Code: 2788)
- Chattanooga Intelect Legend XT 4 Channel Electrotherapy System (Code: 2786)

More Information

Installation Procedure:
- Disconnect the Mains Power Cord from the power supply. Remove the Rear Access Panel and disconnect the Mains Power Cord from the Therapy System
- Remove the Front Access Cover and disconnect the Lead Wires and Accessories
- Remove the Therapy System from the Therapy System Cart, if equipped. Place Therapy System face down on a clean working surface protected with a soft, clean fabric to prevent damage to the lens
- Do not remove the sEMG Module, if installed
- Remove and discard the vinyl label holding the Ribbon Cable in the cavity
- Carefully unroll the Ribbon Cable, making certain not to disconnect it from the Therapy System
- Carefully align the Ribbon Cable Connector to the Module Connector Pins and press down to connect
- Set the Therapy System on the Module
- Make certain the Feet of the Therapy System are resting in the Module Indents
- Carefully place the Therapy System and Module on one side
- Tighten screws until the Module does not move on the Therapy System
- Remove the screw retaining the existing Front Access Panel
- Install Lanyard to the new Extended Front Access Panel using the same screw
- Install Lead Wires and additional accessories to Front Panel
- Install the new Extended Front Access Panel onto Therapy System
- Make certain Lanyard does not become kinked
- Connect the Mains Power Cord to the Therapy System
- Install Rear Access Panel. Connect the Mains Power Cord to an approved power source
- Turn the System On using the On/Off Switch
- The System will automatically recognize the added Module and display a configuration change message
- Read and carefully follow the instructions on the screen
Maintenance:
- Clean the system with a clean, lint free cloth moistened with water and mild antibacterial soap. Do not submerse the system in liquids
- Clean the Therapy System Screen Lens using NOVUS Polish System

Specification

Particulars	Dimensions
Length	11.87" (30cm)
Width	8.25" (21cm)
Height	1.65" (4.2cm)
Power	100 to 240V/50 to 60Hz
Weight	1lb (.5kg)
