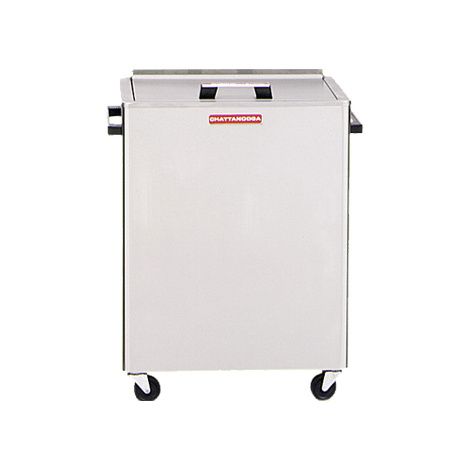

Chattanooga Hydrocollator M-2 Mobile Heating Unit

Chattanooga Hydrocollator M-2 Mobile Heating Unit

Brand/Manufacturer: CHATTANOOGA GROUP
Authorized Retailer Badge

Chattanooga Hydrocollator M-2 Mobile Heating Unit is durable and easy to maintain. This high-quality stainless steel unit gives you a constant supply of temperature-consistent HotPacs. Full fiberglass insulation on mobile unit ensures minimum energy use and prevents heat loss. It is thermostatically controlled to keep steam packs at the ideal temperature for maximum therapeutic benefit.

Item# 2402

  • Total: $2335.45
    Total: $1796.49
Total: $2335.45
Total: $1796.49

Chattanooga Hydrocollator M-2 Mobile Heating Unit Features

  • Chattanooga Hydrocollator M-2 Mobile Heating Unit are equipped with 3" swivel, rubber casters for silent friction free movement
  • Mobile units are equipped with 8cm swivel
  • Simple to fill and drain
  • No plumbing required
  • Also available (separately):
    - Chattanooga Hydrocollator Moist Heat HotPac (code 1006)

Instructions for Use

  • Caution:
    The thermostat is extremely sensitive and the slightest adjustment will alter the temperature several degrees
    - The recommended operating temperature is 160° F to 166° F (71° to 74°C)
    - The temperature of the water should be checked with a thermometer after every adjustment, before using the HotPacs
    - Always keep the water level over the top of the HotPacs to avoid burning or scorching of the packs
    - Never allow the HotPacs to dry after use
    - Check water level daily as it has a natural loss due to evaporation
    - Do not move the Hydrocollator while filled with water. Tipping over could result in burns to the user or others
    - Always unplug the Hydrocollator from the power source before attempting to empty water from unit
    - Make certain the unit is electrically grounded by plugging into a hospital grade electrical outlet with a ground terminal receptacle (U-groundoutlet), 120 VAC only
    - Always replace Hydrocollator HotPacs as soon as they show signs of wear
  • Maintenance:
    - Do not use bleach or cleaners with high chlorine content
    - Do not use paper clips, safety pins, staples, coat hangers, etc., in, on, or near the unit
    - Do not clean the unit with carbon steel wool or a carbon steel brush
    - Use only soft cloth, Scotch-Brite type scouring pads of green, blue, or white abrasiveness, or stainless steel wool if absolutely necessary
    - Do not use abrasive cleaners which tend to disturb the grain in the finish, especially on the exterior of the unit
    - For exterior cleaning, use only non-abrasive stainless steel polish
    - Water level is critical: Add water daily, if necessary, to keep unit full
    - Regularly clean and drain the tank (every two weeks)
    - Failure to properly maintain the unit will cause premature wear and will void the warranty
    - Remove all deposits from interior surfaces and parts
    - The deposits are concentrations of minerals that will allow rusting to begin
    - If allowed to accumulate on the heating element, these deposits will lower the
    efficiency of the element and increase the power consumption of the unit
    - Exercise extreme care if cleaning the element or thermostat(s)
    - These components can be easily damaged without proper care or caution
    - If you suspect that you have hard water, you may need to change the water and clean the unit more frequently
    - Salt deposits are an indication of hard water that will eventually cause rust
  • Cleaning Tips:
    - Check for low or no chlorine content in your cleaner and make sure that the residue is thoroughly rinsed away with water
    - strong solution of vinegar and water may be used to dissolve away deposits, which then must be thoroughly rinsed away
    - Results may vary
    - For exterior cleaning, use stainless steel polish and a soft cloth only
    - Numerous industrial stainless steel polishes are available from various supply companies
    - Use of any cleaner except stainless steel polish on the exterior of the unit is not recommended
    - Abrasive cleaners and scouring pads can damage the finish of the unit
  • Also Buy (Separately)


Particulars Dimensions
Mains Power 110 to 120 V, 50/60 Hz
Power Consumption 1000W
Dimensions 27"L x 16"W x 33"H (67cm x 41cm x 84cm)
Tank Capacity 14 gal (52L)
Temperature Range 160° to 165°F / 71° to 74°C
Thermal Cut-Out Temperature 180° to 185°F / 82° to 85°C
Accuracy +/-10%
Heat up time to 160°F / 71°C 6 Hrs
Cool down time from 160°F / 71°C 3 Hrs
Fiberglass Insulation Yes


1 Year warranty
