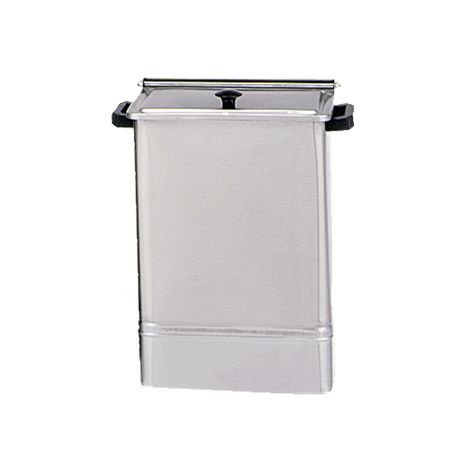

Chattanooga Hydrocollator E-1 Stationary Heating Unit
Chattanooga Hydrocollator E-1 Stationary Heating Unit

Chattanooga Hydrocollator E-1 Stationary Heating Unit

Brand/Manufacturer: CHATTANOOGA GROUP
Save
Authorized Retailer Badge

Chattanooga Hydrocollator E-1 Stationary Heating Unit is a benchmark against which all other heating units are judged. Durable and easy to maintain, these high quality stainless steel units ensure a constant supply of temperature consistent HotPacs. It is just the right size for small clinics and departments where oversize HotPacs are not needed. The E-1 Hydrocollator fits on a desktop, countertop. or mobile stand.

Read More

Buy this product and earn 15.61 Reward Dollars.

Item# 2102

  • ORDERING DETAILS
  • Total: $624.35
    Total: $520.31
Total: $624.35
Total: $520.31

Features

  • Chattanooga Hydrocollator E-1 Stationary Heating Unit is simple to fill and drain
  • Thermostatically controlled temperature
  • No plumbing is required

More Information

  • Caution:
    -     The thermostat is extremely sensitive and the slightest adjustment will alter the temperature several degrees
    - The recommended operating temperature is 160°F to 166°F (71°C to 74°C)
    - The temperature of the water should be checked with a thermometer after every adjustment, before using the HotPacs
    - Always keep the water level over the top of the HotPacs to avoid burning or scorching of the packs
    - Never allow the HotPacs to dry after use
    - Check water level daily as it has a natural loss due to evaporation
    - Do not move the Hydrocollator while filled with water
    - Tipping over could result in burns to the user or others
    - Always unplug the Hydrocollator from the power source before attempting to empty water from unit
    - Make certain the unit is electrically grounded by plugging into a hospital grade electrical outlet with a ground terminal receptacle (U-ground outlet), 120 VAC only
    - Always replace Hydrocollator HotPacs as soon as they show signs of wear

Specification

Particulars Details
Mains Power 110 to 120 V, 50/60 Hz
Power Consumption 1000W
Dimensions 13"L x 8"W x 16"H (33cm x 20cm x 41cm)
Tank Capacity 4.1 gallon (15.44L)
Temperature Range 160°F to 165°F (71°C to 74°C)
Thermal Cut-Out Temperature 180° to 185°F / 82° to 85°C
Accuracy +/-10%
Heat Up Time to 160°F ( 70°C) 2 hour
Cool Down Time from 160°F (70° C) 1 hour
Fiberglass Insulation No

Warranty

1 Year warranty
