Baseline Tactile Semmes-Weinstein Monofilaments

Baseline Tactile Semmes-Weinstein Monofilaments

Brand/Manufacturer: FABRICATION ENTERPRISES
Save
Authorized Retailer Badge
  • FSA Approved
  • Made in USA

Baseline Tactile Semmes-Weinstein Monofilaments are used to measure cutaneous sensory perception threshold of patient. Each monofilament represents a unique amount of force and is marked with its size and force. The force applied by each monofilament increases with each ascending size. Monofilament set can be used to perform tests similar to the Semmes-Weinstein tactile sensitivity test.

Item # Desc Pkg Price
#12-1640 Size: 1.65, 0.008gm of Force Each
$33.17
$24.61
#12-1641 Size: 2.36, 0.02gm of Force Each
$33.17
$24.61
#12-1642 Size: 2.44, 0.04gm of Force Each
$33.17
$24.61
#12-1643 Size: 2.83, 0.07gm of Force Each
$33.17
$24.61
#12-1644 Size: 3.22, 0.16gm of Force Each
$33.17
$24.61
#12-1645 Size: 3.61, 0.4gm of Force Each
$33.17
$24.61
#12-1646 Size 3.84, 0.6gm of Force Each
$33.17
$24.61
#12-1647 Size: 4.08, 1.0gm of Force Each
$33.17
$24.61
#12-1648 Size: 4.17, 1.4gm of Force Each
$33.17
$24.61
#12-1649 Size: 4.31, 2.0gm of Force Each
$33.17
$24.61
#12-1650 Size: 4.56, 4.0gm of Force Each
$33.17
$24.61
#12-1651 Size: 4.74, 6.0gm of Force Each
$33.17
$24.61
#12-1652 Size: 4.93, 8.0gm of Force Each
$33.17
$24.61
#12-1653 Size: 5.07, 10.0gm of Force Each
$33.17
$24.61
#12-1654 Size: 5.18, 15.0gm of Force Each
$33.17
$24.61
#12-1655 Size: 5.46, 26.0gm of Force Each
$33.17
$24.61
#12-1656 Size: 5.88, 60.0gm of Force Each
$33.17
$24.61
#12-1657 Size: 6.10, 100.0gm of Force Each
$33.17
$24.61
#12-1658 Size: 6.45, 180.0gm of Force Each
$33.17
$24.61
#12-1659 Size: 6.65, 300.0gm of Force Each
$33.17
$24.61
#12-1660 2 Piece Set - Normal Each
$60.14
$44.59
#12-1668 2 Piece Set - Protective Sensation Each
$60.14
$44.59
#12-1662 5 Piece Set - Hand Each
$137.87
$102.17
#12-1664 6 Piece Set - Foot Each
$163.18
$120.91
#12-1666 20 Piece Set - Complete Each
$550.44
$407.77

Features

  • Baseline Tactile Semmes-Weinstein Monofilaments normal Set includes 2 piece: 2.83, 3.61 grams
  • Foot set includes 6 piece : 2.83, 3.61, 4.31, 4.56, 5.07, 6.65 grams
  • Hand set includes 5 piece : 2.83, 3.61, 4.31, 4.56, 6.65 grams
  • Protective Sensation set includes 2 piece : 4.56, 5.07 grams
  • Complete Set of 20 includes the following filament sizes: 1.65, 2.36, 2.44, 2.83, 3.22, 3.61, 3.84, 4.08, 4.17, 4.31, 4.56, 4.74, 4.93, 5.07, 5.18, 5.46, 5.88, 6.10, 6.45, and 6.65.
  • Also available (separately):
    - Baseline Tactile Monofilaments Protective Case
  • Semmes-Weinstein Monofilaments Instructions

More Information

  • Instructions for Use:
    1. Rest patients extremity on a stable, padded surface. Make sure patient cannot see the filament being applied during the test.
    2. Instruct the patient on the testing procedure and to indicate when stimulus is felt.
    3. You may use screening forms to record results. Note any areas on callus, abrasion, scarring or other blemishes by drawing them on the screening form. While testing, proceed from distal to proximal and from small to large monofilaments.
    4. Determine where to test. Checks can be done over areas innervated by different nerves. For the hand, test the palmar surface of the index finger and thumb for median nerve function; test the little finger and hypothemar eminence for ulnar nerve; test the dorsum of hand for radial nerve.
    5. While holding the handle, push the filament at a 90 degrees angle against the skin until the filament bows. Hold in place for 1.5 seconds and then remove. For monofilaments 1.65 through 4.08 apply the monofilament in the same location up to 3 times to elicit a response. A single response indicates a positive response. For monofilaments 4.17 through 6.65, apply the stimulus once.
    6. When testing with the 20-piece kit, begin with the 2.83 monofilament. If patient responds to stimulus at all sites, normal cutaneous sensation can be documented. If patient does not respond to a stimulus, choose next largest monofilament and repeat.
    7. When testing with 5.07 only, follow instructions 1-5. Apply the 5.07 to the foot test sites. Record sensation or lack of sensation on each site.
  • Cleaning and Maintenance:
    - These monofilaments are precision instruments.
    - Care should be taken to protect the integrity of the nylon filament.
    - The filament may be cleaned with a mild instrument disinfectant.

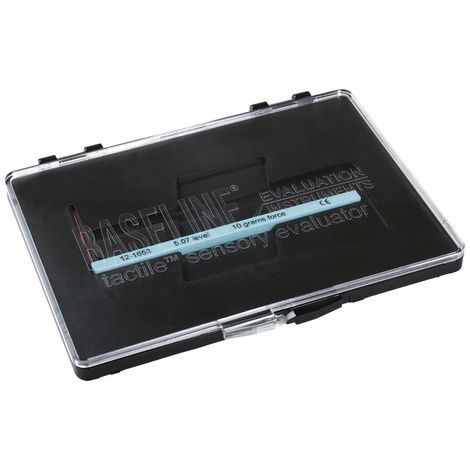

    - These monofilaments are stored in a fitted protective case to help prevent monofilament damage.
    - Substantially bent or kinked monofitament must not be used for testing and should be discarded.

Specification

Evaluator size and force chart

SKU

Evaluator SizeTarget Force GramsHand and Dorsal Foot Thresholds

Plantar Thresholds

12-1640

1.650.008NormalNormal

12-1641

2.360.02NormalNormal

12-1642

2.440.04NormalNormal

12-1643

2.830.07NormalNormal

12-1644

3.220.16Diminished Light TouchNormal

12-1645

3.610.4Diminished Light TouchNormal

12-1646

3.840.6Diminished Protective SensationDiminished Light Touch

12-1647

4.081Diminished Protective SensationDiminished Light Touch

12-1648

4.171.4Diminished Protective SensationDiminished Light Touch

12-1649

4.312Diminished Protective SensationDiminished Light Touch

12-1650

4.564Loss of Protective SensationDiminished Protective Sensation

12-1651

4.746Loss of Protective SensationDiminished Protective Sensation

12-1652

4.938Loss of Protective SensationDiminished Protective Sensation

12-1653

5.0710Loss of Protective SensationLoss of Protective Sensation

12-1654

5.1815Loss of Protective SensationLoss of Protective Sensation

12-1655

5.4626Loss of Protective SensationLoss of Protective Sensation

12-1656

5.8860Loss of Protective SensationLoss of Protective Sensation

12-1657

6.1100Loss of Protective SensationLoss of Protective Sensation

12-1658

6.45180Loss of Protective SensationLoss of Protective Sensation

12-1659

6.65300Deep Pressure Sensation OnlyDeep Pressure Sensation Only
