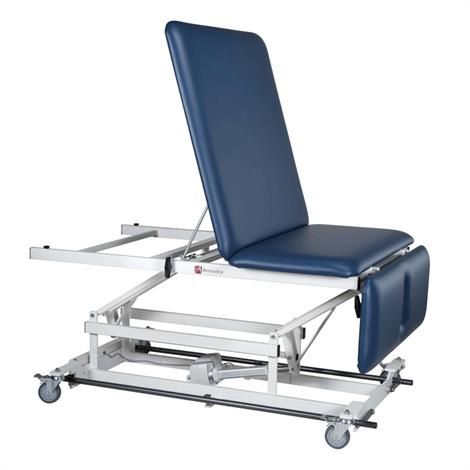

Armedica AM-BA 350 Hi-Lo Treatment Table

Armedica AM-BA 350 Hi-Lo Treatment Table

Brand/Manufacturer: ARMEDICA
Authorized Retailer Badge
  • Made in USA

Armedica AM-BA 350 Hi-Lo Treatment Table has heavy duty steel tube Hi Lo control which allows adjustment of the table height while keeping both hands on the patient and both feet on the floor. Unique design makes the Bar Activated Hi-Lo Control easy for the clinician to use from anywhere around the table, yet out of the patient way as they get on and off the table.

Shipping charges cover lift-gate or dock delivery only



Note: We request that customers inspect their packages properly upon delivery and report any damage immediately. Please refuse any damaged packages, and take a picture for reference.



Estimated Shipping Time: 18 to 20 Weeks

Item# AM-BA350

  • Total: $3495.95
    Total: $2689.19
Total: $3495.95
Total: $2689.19


  • Armedica AM-BA Series Hi-Lo Treatment Table has pivoting joints house hardened steel shoulder bolts to ensure years of trouble-free operation
  • 34oz heavy-duty vinyl with permablok 3 bacterial protection
  • Radiused, seamless corners on upholstered components
  • 27" Wide, Non-Elevating Center Section
  • 4 caster base with 4" total lock ball bearing casters
  • Head section raises 45 degrees and lowers 90 degrees
  • Top sections have welded steel support frames
  • Contoured face/nose opening in head section
  • 1-1/2" firm density foam tops
  • Power: 110 volts, 60Hz motor
  • Top section: 3 piece
  • Maximum height: 37"
  • Minimum height: 18"
  • Length: 76"
  • User Manual

More Information

  • 11 Standard Upholstery Colors:
    - 8 Basic colors and 3 Decorator colors
    - Decorator Colors have an ultra soft leather feel and soft hi-loft backing
    - Treated with a proven vinyl protective coating that is engineered to create a tough, effective barrier against the three biggest problems encountered in environment: germs, abrasion and stains
    - Offers superior bacterial protection that the healthcare industry can count on
    - Guards against the surface growth of fungus mold and mildew spores
    - Retains its good looks and is highly resistant to microbial deterioration that can cause cracking splitting and loss of flexibility
  • Installation Instructions:
    1. Remove all packaging material from the tables.
    2. There is no assembly required on the Armedica Treatment Tables.
    3. Plug the power cord into a properly grounded 120 Volt AC outlet.
    4. The table is equipped with four total lock swivel casters for maximum stability.
    5. The motor is equipped with a thermal cutout that protects it from overheating.
  • Operating Instructions:
    1. To adjust the height of the Armedica Treatment Tables, a foot bar extending the length of the table is used to activate the electric motor assembly.
    2. Pressing down on the bar will raise the table.
    3. Pulling up on the bar will lower the table.
  • Precautions:
    - Read, understand and practice the precautionary instructions in this manual. The AM-BA series treatment table is an adjustable platform to place the patient on for the clinician to diagnose or treat with another modality. Know the limitations and the hazards associated with the Armedica Treatment Tables.
    - The table is not intended to be used inside an operating room. There may be a risk of explosion if table is used in the presence of flammable anesthetics.
    - Always make certain all four casters are locked prior to patient use.
    - Always use both hands when changing the angle of any section of the table.
    - Never change the angle of any section when the patient weight is on that section.
    - Never place your hands or feet nor the patient hands or feet near any of the working mechanisms of the table when raising or lowering the table.
    - Never leave patient unattended.
  • How To Clean Upholstery?
    - A mixture of mild soap and water is recommended for general cleaning
    - A 10% bleach 90% water mixture is also acceptable
    - Protex by Parker labs is a commercial disinfectant that is appropriate to use on our vinyl


Particulars Values
Table Top 76" x 27"
Head Section 15" x 27"
Center Section 22" x 27",
Does not raise
Foot Section 39" x 27",
Raises 73°
Weight Capacity 400 lbs



Limited Warranty of 18 months. Warranty covers defects in materials and defects in workmanship.
