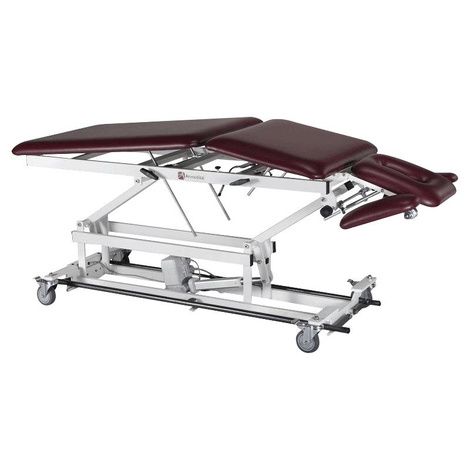

Armedica AM-BA505 Five Section Hi-Lo Treatment Table With Adjustable Arm Rests

Features

• Armedica AM-BA505 Five Section Hi-Lo Treatment Table With Adjustable Arm Rests has firm density, 1.5" thick foam padding that ensures years of dependable service and provides the needed support to patient
• Head section comes with a contoured face/nose opening and adjusts 90 degrees down and 45 degrees up
• Foot sections elevates 73 degrees
• Center section is assembled with a spring loaded lock and elevates 30 degrees when the lock is released
• Table top upholstery is made of a 34 oz heavy-duty vinyl with Permablock 3(R) bacterial protection to help maintain sanitary requirements, promote ease of cleaning and eliminate the risks of cross contamination
• Table top features a seamless upholstery design and rounded corners that ensure use safety and enhance wear-resistance
• Adjustable height with minimum of 18" allows accommodating patients of different age groups and with mobility problems or on wheelchairs comfortably and safely
• Maximum table height of 37" helps to realize a convenient work scene for the practitioner
• Table is assembled with a 110 volts, 60Hz motor and a full length, heavy duty steel tube that help realize Hi-Lo control and provide a generous lifting capacity of up to 400 lbs
• Tube is easily accessible from anywhere around the table and ensures convenient Table operation while keeping both hands on the patient
• To ensure years and years of trouble-free operation, the lift system is constructed with the use of reinforced parts, such as hardened steel shoulder bolts with locking nuts and double-braced lifting arms
• Four total lock, heavy duty swivel casters promote excellent mobility and allows for steady table placement when required
• Adjustable armrests measure 12.5" x 5.5" and can be lowered as required for a certain treatment procedure, remaining on the same plane with the headrest
• Dimensions:76"L x 27"W x 18" - 37"H
• Elevating Center Section: 22" x 27"
• Three-Piece Head:15" x 13"
• Foot Section: 39" x 27"
