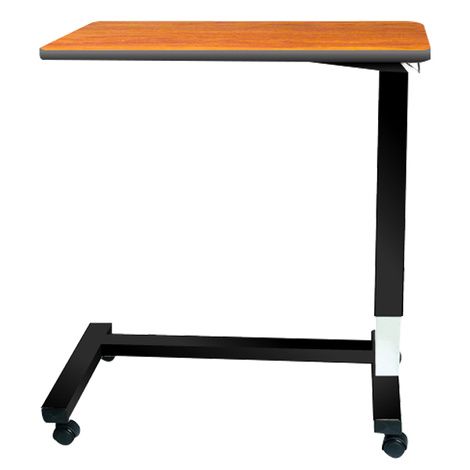

AMFAB Heavy Duty Automatic Overbed Table

AMFAB Heavy Duty Automatic Overbed Table

Brand/Manufacturer: AMFAB CO, LLC
Save
Authorized Retailer Badge

AMFAB Heavy Duty Automatic Overbed Table is ideal for the facility that is looking for an economical "Big" overbed table. The oversized 18" wide and 32" long high pressure laminate top offers extensive space to be used by both the patient and caregiver. Heavy Duty Table supports up to 100 lbs. evenly distributed across the large top surface. The oversize 2" dual wheel caster provide for easy maneuverability around the room and over thresholds. Automatic lift safety feature helps prevent accidental tipping of the table if the bed rises while the table is over it.

Item# 4528

Features

  • Top:
    - Walnut wood grain high pressure laminate on 3/4" particle board core
    - Flush mounted vinyl T-mold
    - The large 18" x 32" top surface provides plenty of room for eating, reading, or any activity and will support up to 100 pounds evenly distributed
    - Top raises with the slightest upward pressure applied to any point under the top, and locks into 15 positions between 30" and 45" high, and lowers with a touch of the convenient release lever
  • Frame:
    - Combines durable, heavy duty construction and attractive functional design with effortless counterbalanced spring height adjustment
    - Chrome plated 11 and 12 gauge welded tubular steel column and base
    - Heavy duty column features a patented spring assisted height mechanism which locks into place in 1" increments between the 30" and 45" range and can be easily mounted on either the right or left side of the base
  • Base:
    - Heavy duty U-Base with 28" of inside clearance for easy use with chair/wheelchair
    - 1-1/2" x 2-1/2" tubular steel
  • Height:
    - 30" - 45" adjustable in 15 one inch increments
  • Laminate Tops:
    -Variety of optional high pressure laminate tops are offered to complement room decor and remain attractive for years of service
    - Designed to resist damage from spills of alcohol, boiling water, food acids or inks
  • Double Mirror Vanity (Optional):
    - Fits 18" wide tops
    - Made of durable, polymer construction, this dual compartment vanity can be accessed from either side of the table
    - Large, hinged, acrylic mirrors attached with a living hinge, and rounded corners for easy cleaning makes this product a perfect addition to overbed table purchase
    - Features two compartments with hinged acrylic mirrors
  • Click Here for Assembly Instructions

More Information

  • Tools Required:
    - Phillips Screwdriver
    - 9/16" wrenches
  • Assembly Instructions:
    1. Lay Top on table or floor with Top Bracket.
    2. Loosen Top Mounting Bolts until Column Assembly will fit into Top Bracket.
    3. Elevate Trip Handle to approximately a 45 degrees angle. Insert Column Assembly into Top Bracket making sure the rectangular notches are aligned with the Top Bracket dimples.
    Note: The Black Shipping Screw must face the direction. Tilt the column slightly in the direction of the Trip Handle. Then seat the Back Mounting Plate to the back of the Column Assembly and Top Bracket. Make sure to align the embossed dimples in the Back Mounting Plate to the Column Assembly rectangular notches. Also make sure the Trip Handle tab is in the dog channel in the Column Assembly. When everything is seated tighten Top Mounting Bolts.
    4. Lay the Base on a table or floor and install the Casters into the Base.
    5. Install Base Assembly to the Column Assembly with Casters pointing up. Hand tightens the Hex head bolts through the bolt plate and base.
    6. Align the base and top by turning the entire table on its side with the base resting on the black end caps and top resting on its edge. Tighten hex head bolts.
    7. Place table assembly up on its base.
    8. Remove and discard Black Shipping Screw. Assembly is complete.
  • Operating Instructions:
    1. To elevate the table lift the Top at any place underside and push to desired height.
    2. To lower the table, squeeze the Trip Handle to release the column and push down to the desired height.
