AMFAB EZ Table

AMFAB EZ Table

Brand/Manufacturer: AMFAB CO, LLC
Save
Authorized Retailer Badge

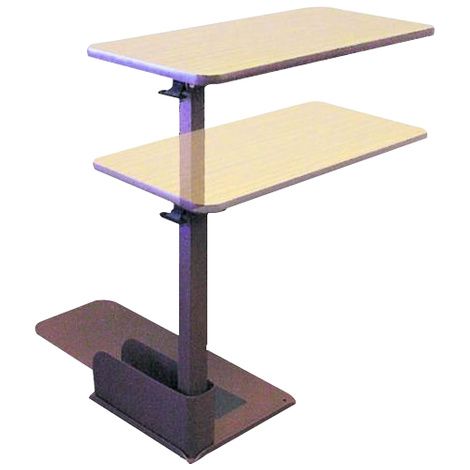

AMFAB EZ Table is designed to work with most standard lift chairs and recliners. It is an height-adjustable table that swivels in front of the chair when the user wants it and then easily swivels to the side to function as a side table when not in use. EZ Table comes with a sturdy bottom plate that easily slides under the chair base and uses the weight of the chair to secure the table in place.

Item# 501

Features

  • AMFAB EZ Table comes with an easy-to-clean, scratch resistant surface
  • Requires no attachment to chair or couch
  • Comes in an attractive brown, wrinkle coat finish for years of durable and aesthetically appealing use
  • Has infinite height adjustment between 23-1/2" to 33"
  • Frame is made of heavy gauge welded tubular steel column and base
  • Can be used for many different household activities such as eating, writing, games, crafts, etc
  • Offers convenience and ease-of-use to people who are physically challenged
  • Top pivots 360 degrees at the touch of a hand
  • Has a built-in magazine rack
  • Product weight is 43 lbs
  • Measures 2.4 cubic feet
  • Click Here for Assembly Instruction

More Information

  • Tools Required:
    - Phillips screwdriver
    - (2) 7/16" wrenches
  • Assembly Instructions:
    1. Place the base under the left side of chair with the magazine rack opening facing the rear of chair. Place the front left leg of the chair on the positioning pad located near the magazine rack.
    2. Stand the Column on end, making sure the Trip Rod is visible in the rectangular tube but not protruding out of the top. If necessary, shake the Column until the rod drops.
    3. Insert Trip Handle into the Column with the rounded side up. Be sure that the Trip Handle rests on top of the rod inside the Column foot
    4. Place the Top on a flat surface, with the Top Bracket facing upward. Then, while holding the Trip Handle in place so it does not fall out, insert the Column into the Top Bracket. Align the holes in the Column foot, the Trip Handle and the Top Bracket. Install both bolts and both nuts through these aligned holes with the two (2) 7/16" wrenches.
    5. Pick up the Top and Column and place over the round tube on the Base inside of the magazine rack. Be sure the Column has dropped down all the way!
    6. Remove the black shipping screw in the column and replace it with the zinc plated screw, using a Phillips screwdriver.
  • Operating Instructions:
    A. To elevate the table, push upwards at any position on the underside of the top, until the top has reached the desired height.
    B. To lower, squeeze the trip handle up towards and push the top down to the desired height. The table will operate best if the downward pressure is placed at the column end of the top.
    C. Occasional application of light oil lubrication between the inner and outer columns will help keep your Over Bed Table operating smoothly. Penetrating oils with rust inhibitors are recommended.
    D. The table will swing a full 360 degrees around on the base to be used as an end table or a lap tray as needed.

Specification

Particulars Dimensions
Minimum Height 23.5"
Maximum Height 33"
Table Rotation 360 degrees
Table Top Dimensions 15"W x 30"L
Table Top Material Wood grain laminate
Table Base Material Steel
