Everyway4All CA65 3-Section Therapeutic Physical Therapy Treatment Table

Everyway4All CA65 3-Section Therapeutic Physical Therapy Treatment Table

Brand/Manufacturer: EVERYWAY MEDICAL INSTRUMENTS
Save
Authorized Retailer Badge

Everyway4All CA65 3-Section Therapeutic Physical Therapy Treatment Table has classic trio lift construction which offers excellent stability through all ranges of height adjustment. Featuring twin gas strut head section operation, four retractable heavy duty castors, and four large pad leveling feet, combine to make the classic range of couches a perfect choice for any clinic, department or private practice.

Why Choose CA65 Treatment Table?

  • Twin large pillars for added stability
  • Maximum load capacity: 225 kgs or 496 lbs
  • Twin gas struts for solid head and leg sections
  • Support individual leveling foot on all 4 corners
  • Four retractable heavy duty castors

Item # Desc Pkg Reward Price
CA65 Black Each $48.96
$1795.15
$1631.99

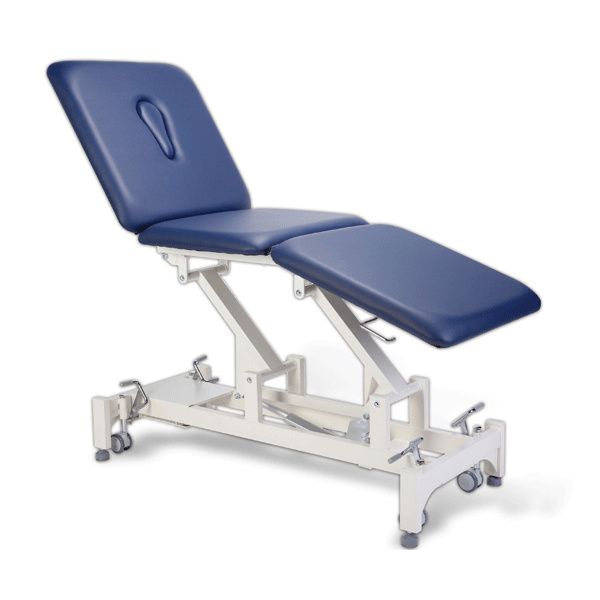

CA65 Blue Each $48.96
$1795.15
$1631.99

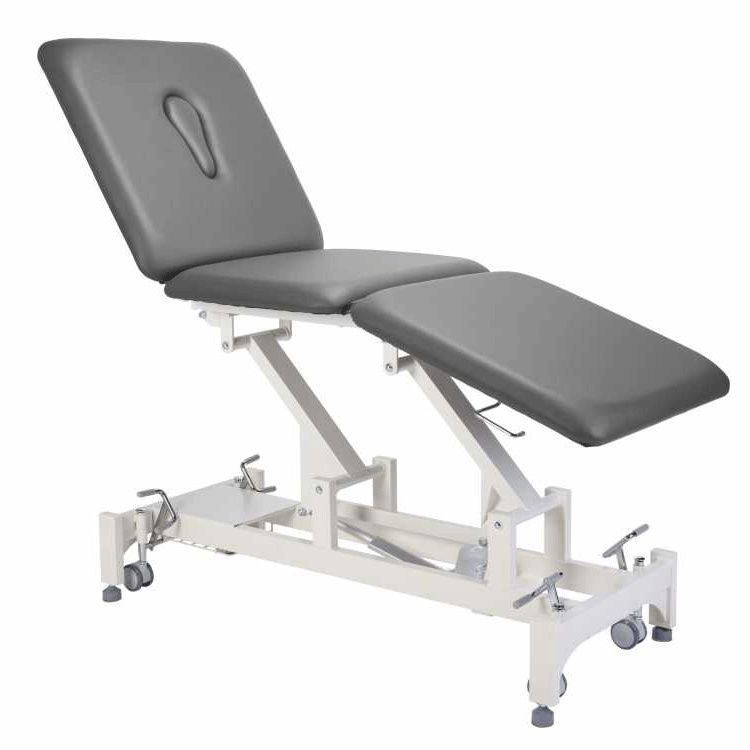

CA65 Grey Each $55.50
$2220.95
$1849.99

Features

  • Everyway4All CA65 3-Section Therapeutic Physical Therapy Treatment Table includes
    - 1 Motorized actuator for Hi/Lo adjustment
    - Twin oversized pillars for added stability
    - Individual leveling foot on all 4 corners
  • Maximum load capacity: 225 kgs (496 lbs)
  • 100 to 240VAC (Universal Voltage)
  • Plug Type: US Plug
  • Weight: 86.1 kgs
  • User Manual

More Information

How to Clean and Maintain Everyway Treatment Table?

  • Cleaning Instructions
    1. Prior carrying out any cleaning process, disconnect the power cord from the main wall socket if it is electric mode
    2. Move the table to a suitable area prior cleaning
    3. Use only Neutral Detergent (pH 7) and dilute with warm water
    4. Use alcohol wipes for cleaning hand or foot control (Electric Models Only)
    5. Wipe the table dry prior use
    6. Wash your hands thoroughly after cleaning to avoid irritation
    7. For Decontaminating the Table, please follow the above instructions and use a diluted solution of Hypochlorite with cold water (Mix at 10,000ppm or part per million)
  • Maintenance Indications
    1. A visual inspection should be carried out daily prior to use
    2. Check for any signs of damage and ensure that all nuts, bolts, screws, etc. are present, secure and fitted properly
    3. Do not over-tighten nuts, bolts screws as this may cause binding between two components and/or juddering
    4. Routine servicing or repair must be carried out by qualified servicing personnel
    5. Always refer to the Service Section in the Instruction Manual when in doubt of any servicing procedures
    6. Regular inspection and servicing should be carried out every six months of normal use
    7. If the product is used more frequently, the duration between inspections and servicing should be narrowed down to every three months
    8. Check whether each section of the tabletop is securely bolted to the supporting frame. If any bolts or screws are found loose, tighten it prior to use
    9. Check whether the gas struts underneath the tabletop operate smoothly when a table section is moved throughout the movable range
    10. The tabletop should be locked once the Release Lever is released
    11. For Electric Models: Check all cables connected to the control box, power Cord, cable from controllers, cable connected to the actuators or micro-switches and look for any cuts, abrasions and or any other signs of deterioration. If found, please consult your authorized dealer/agent and purchase necessary parts for replacement.
    12. Check whether the connectors to the control box from the actuator are secured in their designated socket and the main power cord is connected securely to the main wall socket.


Note: For Warnings and other information please refer to user manual.

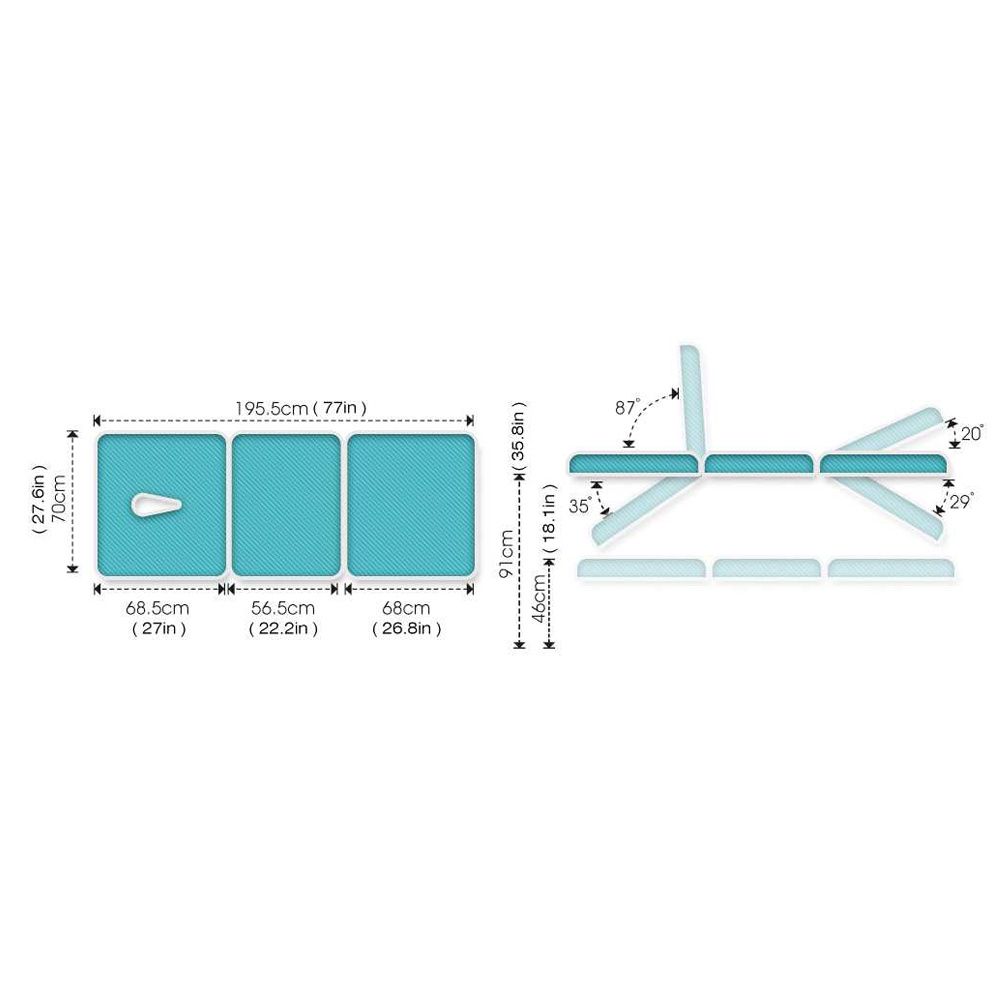

Specification

Particulars Specifications
Minimum Height 460mm (18.11”)
Maximum Height 910mm (35.83”)
Table Top Width 700mm (27.56”)
Head Section Length 685mm (26.97”)
Mid Section Length 565mm (22.24”)
Leg Section Length 680mm (26.77”)
Total Length 1955mm (76.97”)
Head Tilt Angles -35º to +87º
Leg Tilt Angles -29º to +20º
Lift Mechanism Electric
Breathing Hole/Plug 1
Retractable Castors 4
Weight Rating (Maximum Load) 225kgs (496lbs)
Control Box Input Voltage and Rating 100~240VAC, 50/60Hz, 2A
Control Box Output Voltage DC 32V, 80VA
Actuator Input Voltage DC 24V
Duty cycle Maximum 10% 2 minutes ON / 18 minutes OFF
Maximum Load Push 8000N
Maximum Current 6A



Warranty

  • 1 year on Mechanical Parts
  • 2 years on Electronics
  • 3 years on Frame
