Everyway4All CA190 Tiltima 1-Section Tilt Table
Everyway4All CA190 Tiltima 1-Section Tilt Table

Everyway4All CA190 Tiltima 1-Section Tilt Table

Brand/Manufacturer: EVERYWAY MEDICAL INSTRUMENTS
Save
Authorized Retailer Badge

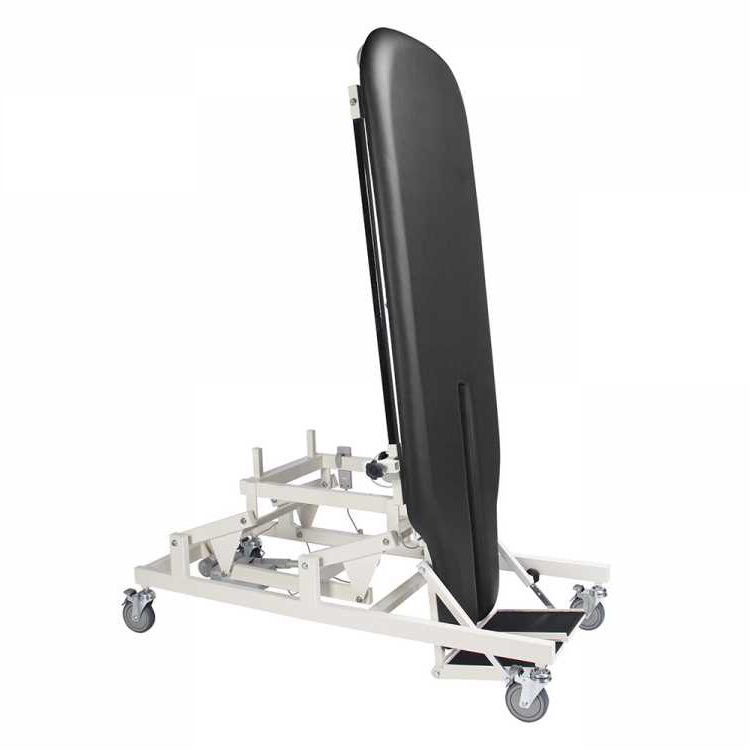

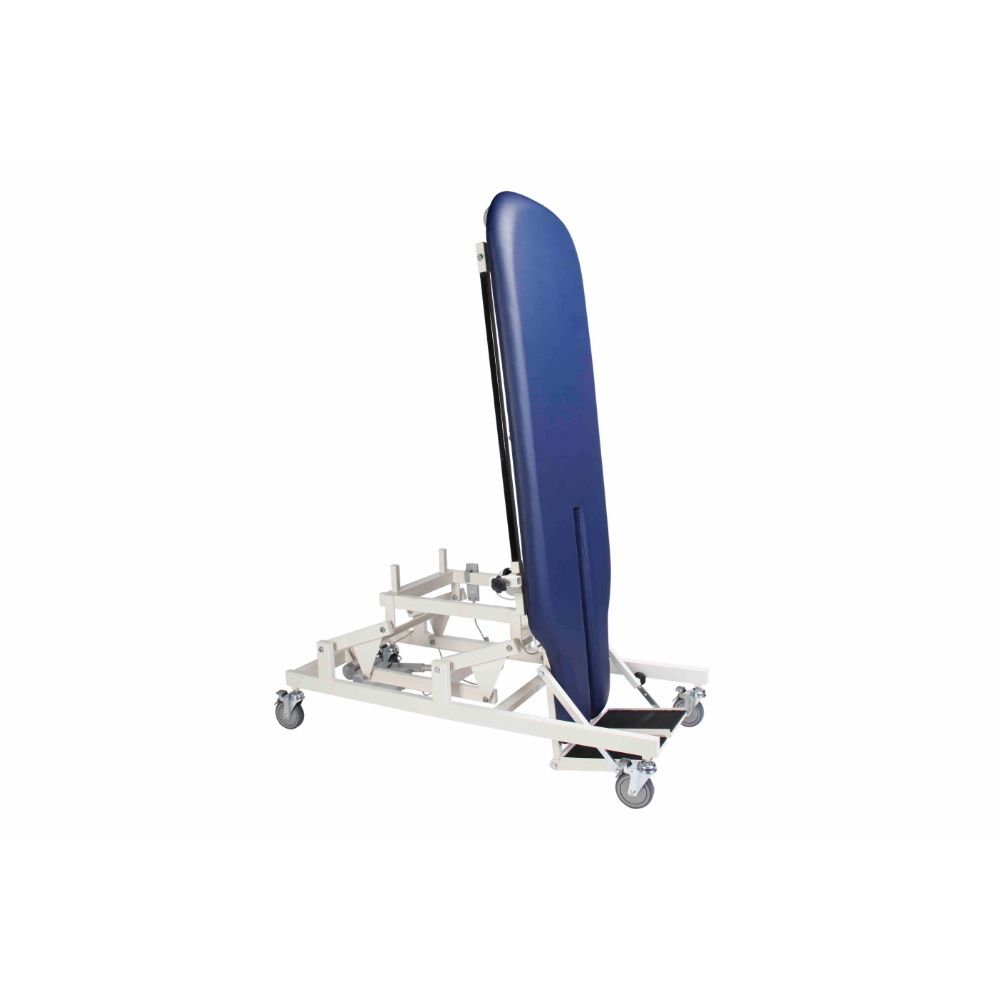

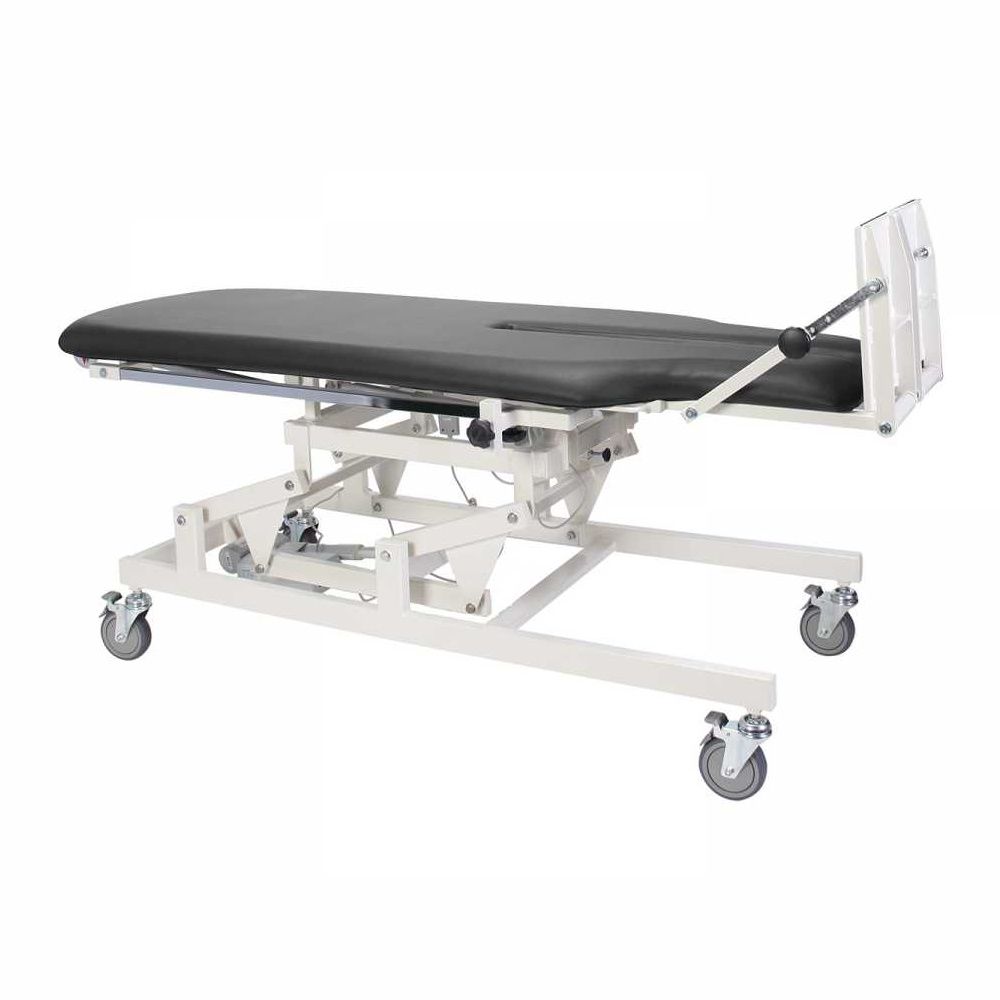

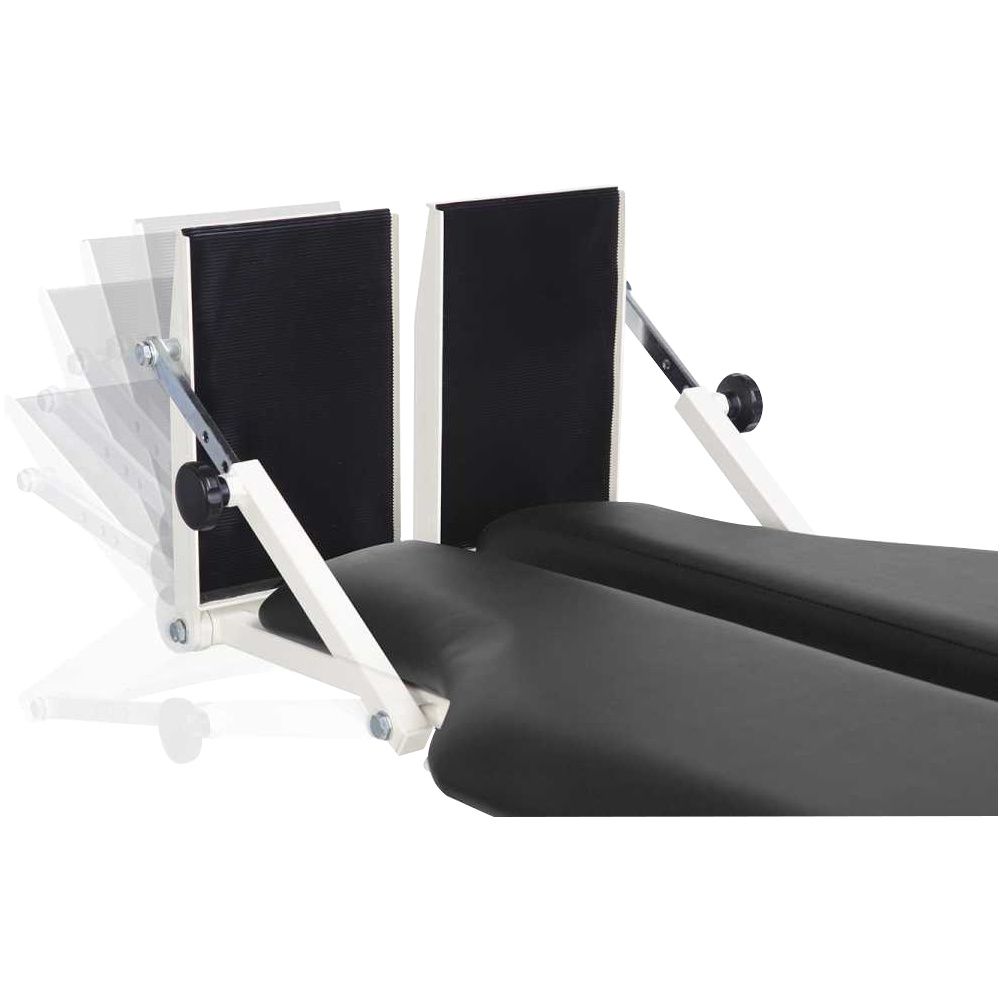

Everyway4All CA190 Tiltima 1-Section Tilt Table is the Ultima of Tilt Tables for diagnosis of syncope or dysautonomia. In terms of its comfort rating, mechanical stability, and operational movement, it is one of the best. The two adjustable patient foot platforms (Foot Paddle) can be tilted to a positive angle of 20º. All 4 corners of the CA190 Tiltima are supported by a 5-inch castor with swivel lock and brake.

NOTE : Esitmated lead time 12 - 13 Weeks.

Estimated Shipping Time: 8-10 Weeks

Read More

Item# CA190

  • ORDERING DETAILS
  • Total: $2677.95
    Total: $2059.99
Total: $2677.95
Total: $2059.99

Features

  • Everyway4All CA190 Tiltima 1-Section Tilt Table comes with the following accessories:
    - 1 Chest Strap

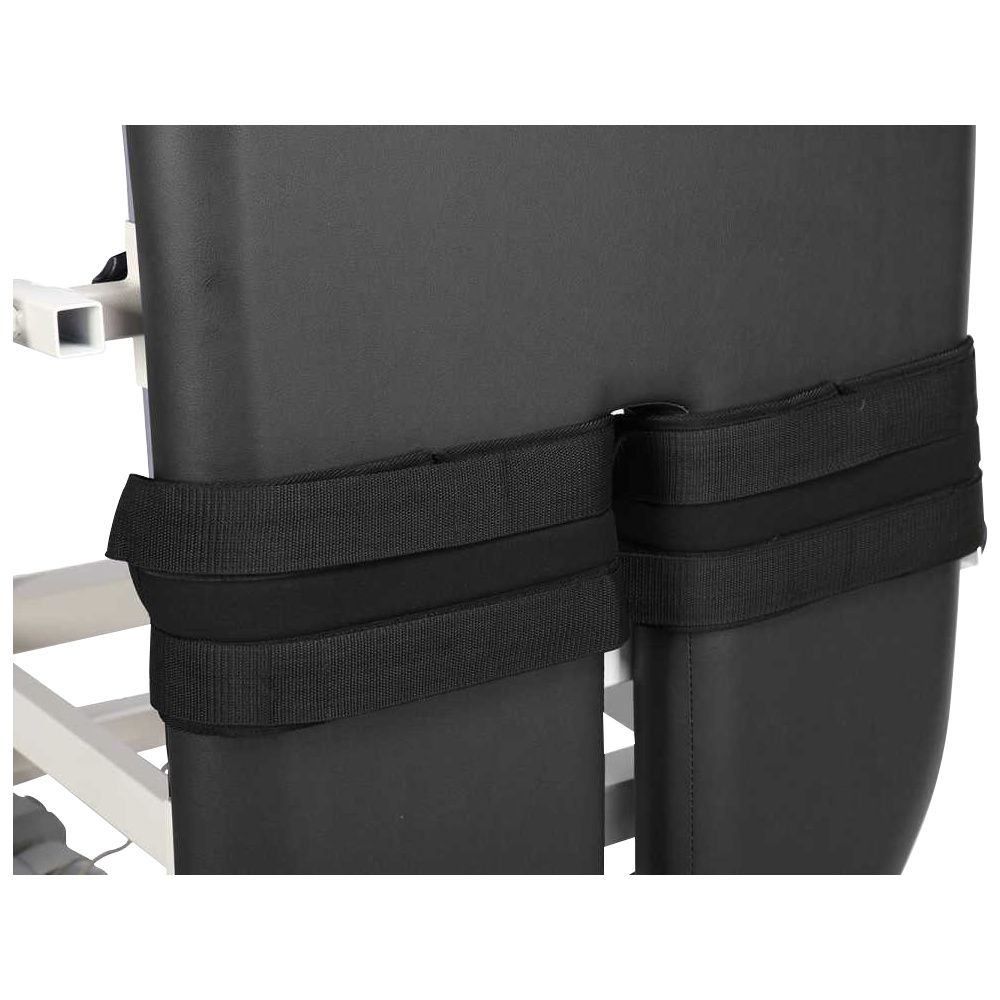

    - 2 Thigh Straps
    - 2 Calf Straps

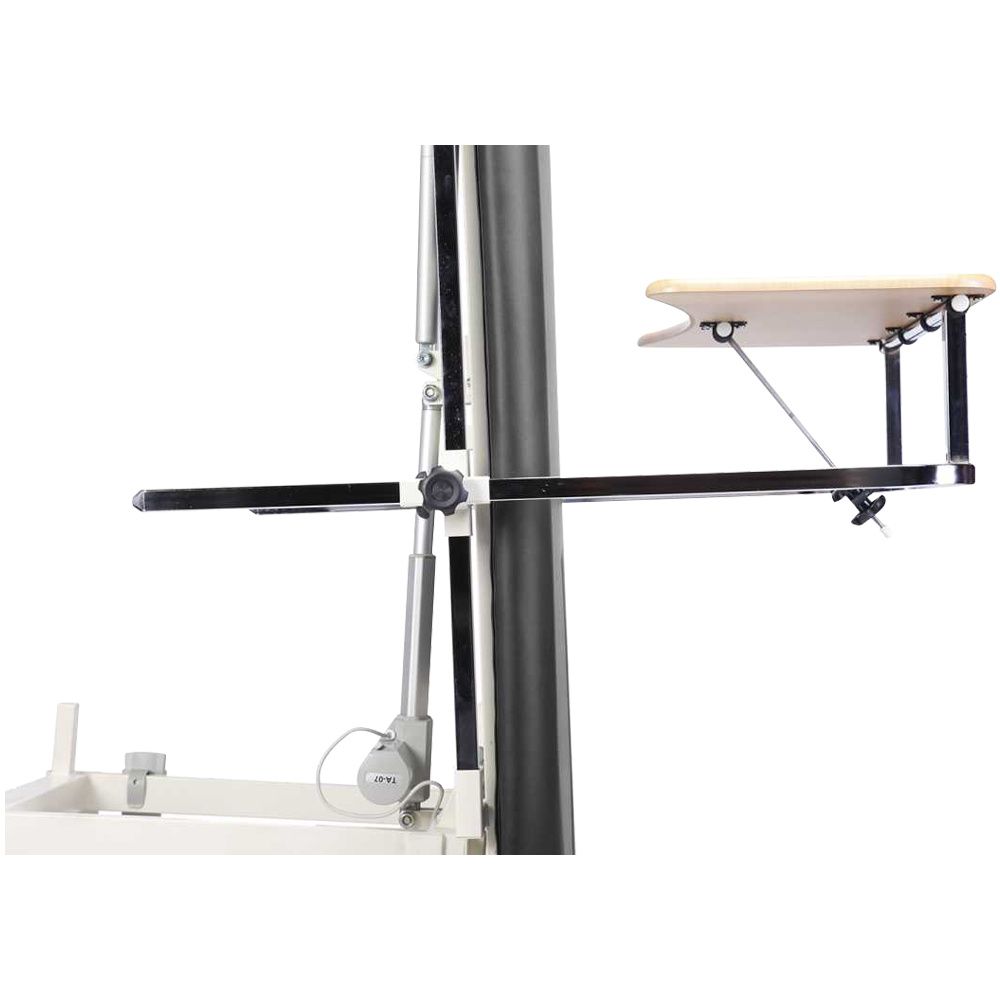

    - 1 Working Table
  • Controlled by a (4 Buttons) Hand Control
  • 1 Motorized Actuator for Hi/Lo Adjustments (55cm to 90cm)

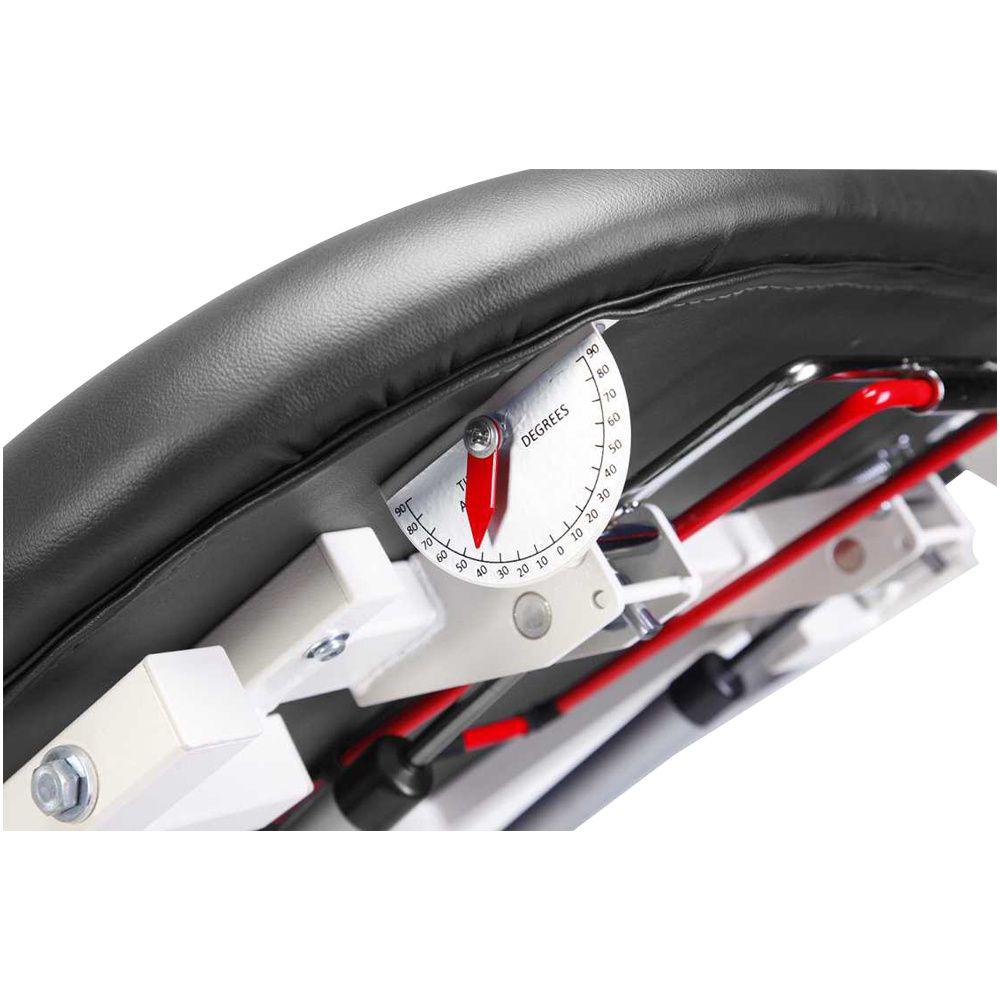

  • 1 Motorized Actuator for Tilt Adjustments (0º to 90º)
  • Frame Construction is made with Steel Tubes of (a) 6 x 3cm and (b) 7 x 3cm dimensions and by the thickness of 2mm
  • For absolute safety requirements, the CA190 Tiltima is equipped with a 1-Pull Emergency Handle at the back of the table
  • The emergency disengagement lever utilizes Twin Gas Struts for smooth sliding from the Vertical to the Horizontal position
  • When in an emergency situation where no utility power is available, the emergency handle can be pulled to allow the table top to be moved back from a vertical to a horizontal position, and the patient can then be unstrapped and transferred to a normal patient.
  • In case of loss of utility power, just pull on the Red Emergency Handle at the back of the table to disengage the Motorized Actuator (otherwise locked) to allow the patient to be unstrapped and lifted off the table
  • 100 to 240VAC (Universal Voltage)
  • Plug Type: US Plug
  • User Manual

More Information

  • Safety Instructions:
    - Prior to starting to use the table, it is important that you read and understand this manual.
    - You may also consult this manual whenever you're in doubt about using the table.
    - This devise MUST BE USED under the supervision of a licensed practitioner.
    - Use only the original accessories that is manufactured by Everyway Medical Inst. Co., Ltd. for the table.
    - DO NOT USE the table in "Wet Rooms" - Hydrotherapy Rooms.
    - Keep the table away from direct heat and/or fire.
  • Warnings:
    - Please make certain that Electric Couches /Tables are not used in the presence of flammable gases such as anaesthetic agent.
    - Do not sit on the edge of the Head or Foot Section of a couch or table as possible damages to the (1) Gas Struts and/or (2) Gas Strut Handle Bar may occur. The standard Load of a couch or table is rated at which the loading weight is distributed evenly across the working surface but not on a specific area or side of the tabletop.
    - It is hazardous to exceed the rated maximum load of a couch or table.
    - The operation Electric couch or table requires the Power Cord securely plugged into the wall utility power. When the Power Cord is unplugged, it does not operate unless the couch or table is equipped with a backup battery.
    - Use only the original accessories that are manufactured by Everyway Medical Inst. Co., Ltd. for a table or couch.
    - Children MUST be refrained from using any tables or couches by means of operating a hand or foot control or Elevating Bars.
  • Cautions:
    - Before allowing a patient to lay on the couch or table, please ensure that the Leveling Foot at each corner is LEVELED & RESTING on the floor securely after the castors are retracted. If not, please adjust the leveling foot accordingly to stabilize the table.
    - Check any trapped power cords or cables underneath the couch or table while moving the table.
    - Keep any person; limbs away from all moving parts of a couch or table especially when the table is being moved from one place to another
    - When applying electrotherapy to a patient, please keep his or her body away from any contact with metal parts of the couch or table.
    - Please familiarize yourself with the operation of all various controls of actuator and gas struts to avoid inadvertent actuation of table sections.

Specification

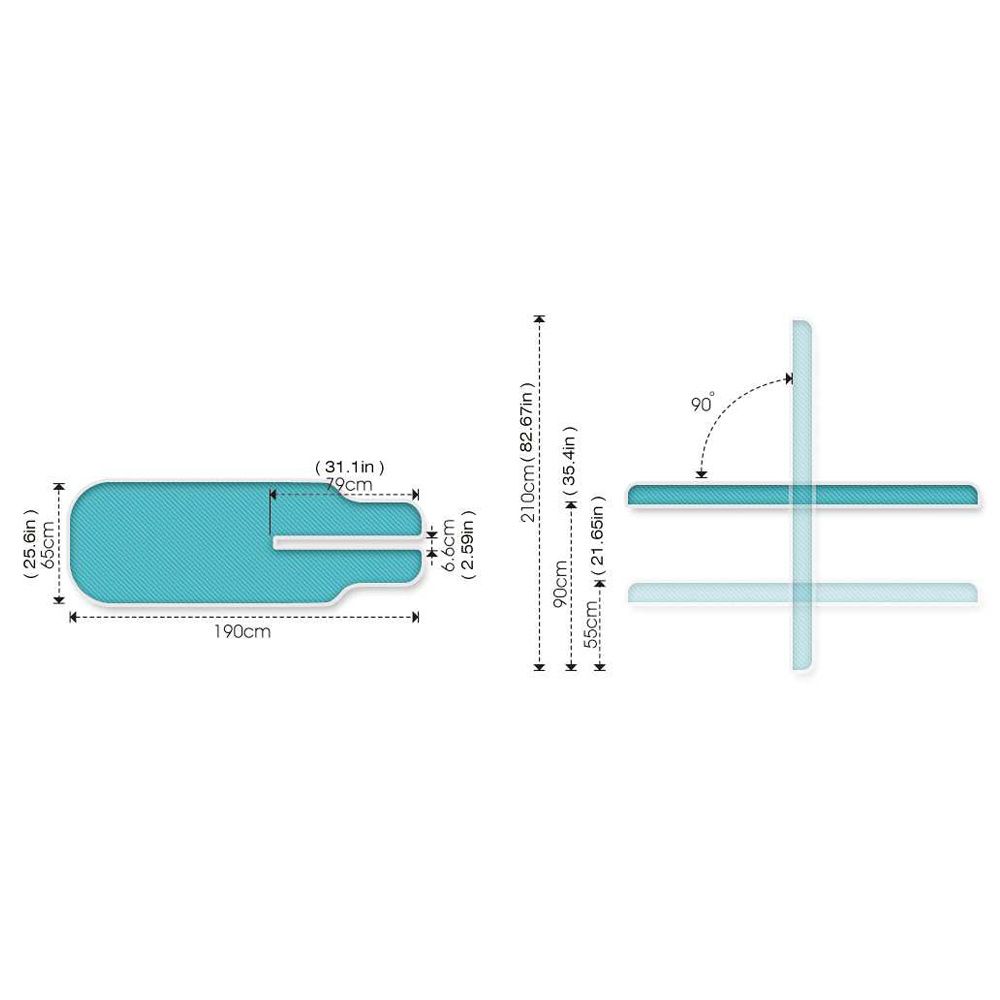

TECHNICAL SPECIFICATIONS
Minimum Height 550mm (21.65”)
Maximum Height 900mm (35.43”)
Top Height at 90º 2100mm (82.67”)
Table Top Width 650mm (25.59”)
Total Length 1900mm (74.80”)
Tilt Angle 0º to 90º
Lift Mechanism Electric
Breathing Hole/Plug N/A
Castors w/h Swivel Lock & Brake 4
Weight Rating (Max. Load) 225kgs (496lbs)
Gross Weight 104.8 kgs
CONTAINER LOAD CAPACITY
20ft 21 tables
40ft 42 tables
40ft HQ 56 tables
ELECTRICAL DATA
Control Box Input Voltage and Rating 100~240VAC, 50/60Hz, 2A
Control Box Output Voltage DC 32V, 80VA
Actuator Input Voltage DC 24V
Duty cycle Maximum 10% 2 minutes ON / 18 minutes OFF
Maximum Load Push 8000N
Maximum Current 6A

Warranty

  • 1 year on Mechanical Parts
  • 2 years on Electronics
  • 3 years on Frame
