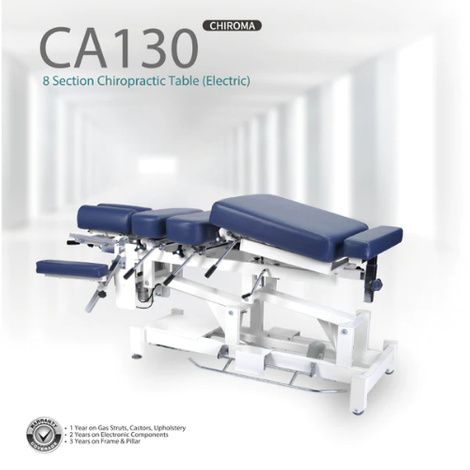

Everyway4All CA130 Chiroma Electric 8 Section Chiropractic Drop Medical Treatment Table

Name: Everyway4All CA130 Chiroma Electric 8 Section Chiropractic Drop Medical Treatment Table
Brand: EVERYWAY MEDICAL INSTRUMENTS
SKU: 43707
Price: 3620.59008789063 USD
Availability: InStock

Brand/Manufacturer: EVERYWAY MEDICAL INSTRUMENTS

Call 816-266-4969 for a B2B quote

Everyway4All CA130 Chiroma Electric 8 Section Chiropractic Drop Medical Treatment Table provides professional chiropractor with the simplicity of use. Since the main emphasis of chiropractic is on manual and manipulative therapy for the treatment of joint dysfunctions, especially those of the spinal column, Chiroma serves as a Force Extension as well as Force Absorbent platform for chiropractors to perform various tentative tasks without the risks of collateral damage to the patient.

Shipping Charges Applicable

Item #	Desc	Pkg	Price
CA130	Black	Each	$4706.75 $3620.59
CA130	Blue	Each	$4706.75 $3620.59
CA130	Grey	Each	$4706.75 $3620.59

Features

Everyway4All CA130 Chiroma Electric 8 Section Chiropractic Drop Medical Treatment Table includes
- 1 Motorized Actuator for Hi/Lo Adjustment
- 1 Motorized Actuator for Hi/Lo Adjustment (Head Section)
- 1 Motorized Actuator for Tilting Adjustment (Head Section)
- 1 Joystick for Hi/Lo and Tilting Adjustment
- 2 Individual Leveling Foot at Head Section
- 2 Hauling Wheels at the Rear Section
- 4 Sections are equipped with Adjustable Tension-Drop
- 2 Fixed Arm Rest for absolute comfort and reliability
- 1 Motor for Height Adjustment
- 2 Motor for Height Adjustment & Tilting Adjustment of the Head Section
- 1 Foot Control
- 8 Sections Blue Upholstered Table Top
Designed to be lifted and moved around by lifting just the Arm Rest
Maximum Load Capacity of 225 kgs (496 lbs)
Adjustable tension drop can be initiated at all sections of the body:
- Cervical Drop
- Thoracic Drop
- Lumbar Drop
- Pelvic Drop
Weight: 103.5 kgs
User Manual

More Information

Safety Instructions:
- Prior starting to use the table, it is important that you read and understand this manual.
- You may also consult this manual whenever you are in doubt about using the table.
- This devise MUST BE USED under the supervision of a licensed practitioner.
- Use only the original accessories that is manufactured by Everyway Medical Inst. Co., Ltd. for the table.
- DO NOT USE the table in "Wet Rooms" - Hydrotherapy Rooms.
- Keep the table away from direct heat and/or fire.
Warnings:
- Please make certain that Electric Couches /Tables are not used in the presence of flammable gases such as anaesthetic agent.
- Do not sit on the edge of Head or Foot Section of a couch or table as possible damages to the (1) Gas Struts and/or (2) Gas Strut Handle Bar may occur. Standard Load of a couch or table is rated at which the loading weight is distributed evenly across the working surface but not on a specific area or side of table top.
- It is hazardous to exceed the rated maximum load of a couch or table.
- The operation Electric couch or table requires the Power Cord securely plugged-in to the wall utility power. When the Power Cord is unplugged, it does not operate unless the couch or table is equipped with a backup battery.
- Use only the original accessories that are manufactured by Everyway Medical Inst. Co., Ltd. for a table or couch.
- Children MUST be refrained from using any tables or couches by means of operating a hand or foot control nor Elevating Bars.
Cautions:
- Before allowing a patient to lay on the couch or table, please ensure that the Leveling Foot at each corner is LEVELED & RESTING on the floor securely after the castors are retracted. If not, please adjust the leveling foot accordingly to stabilize the table.
- Check any trapped power cords or cables underneath the couch or table while moving the table.
- Keep any persons; limbs away from all moving parts of a couch or table especially when the table is being moved from one place to another
- When applying electrotherapy to a patient, please keep his or her body away from any contacts with metal parts of the couch or table.
- Please familiarize yourself with the operation of all various controls of actuator and gas struts to avoid inadvertent actuation of table sections.

Specification

Particulars	Specifications
Minimum Height	540mm (21.26”)
Maximum Height	980mm (38.58”)
Table Top Width	600mm (23.62”)
Head Section Length	310mm (12.20”)
Arm Rest Length	410mm (16.14”)
Thoracic Section Length	190mm (7.48”)
Abdominal Section Length	220mm (8.66”)
Lumbar & Leg Section Length	580mm (22.83”)
Ankle Section Length	120mm (4.72”)
Total Length	1600mm (63”)
Head Tilt Angles	-15º to +15º
Head Elevation	100mm (3.93”)
Head-Drop Travel Range	220mm (8.66”)
Thoracic-Drop Travel Range	250mm (9.84”)
Abdominal-Drop Travel Range	250mm (9.84”)
Lumbar & Leg- Drop Travel Range	170mm (6.69”)
Lumbar & Leg Tilt / Lift Angle	0º to 15º
Ankle Section Extension Range	280mm (11.02”)
Lift Mechanism	Electric
Hauler Wheel (Fixed at Leg End)	2
Weight Rating (Maximum Load)	225kgs (496lbs)
Control Box Input Voltage and Rating	100~240VAC, 50/60Hz, 2A
Control Box Output Voltage	DC 32V, 80VA
Duty cycle	Maximum 10% 2 minute ON / 18 minute OFF
Maximum Load	Push 8000N
Maximum Current	6A

Warranty

1 year on Mechanical Parts
2 years on Electronics
3 years on Frame
