HealthCraft Dependa Grab Bar

HealthCraft Dependa Grab Bar

Authorized Retailer Badge
  • HyGiene Products
  • Non Returnable
  • FSA Approved

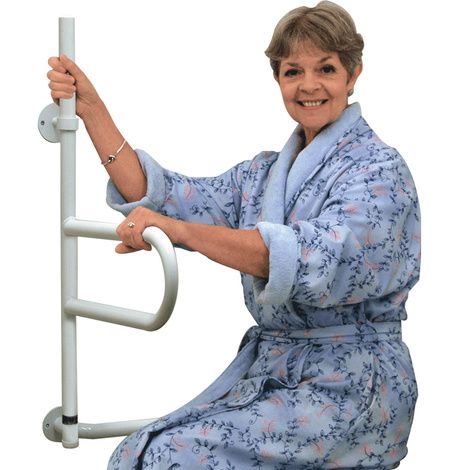

HealthCraft Dependa Grab Bar offers an unparalleled range of bathtub and shower support. Along with providing traditional grab bar support, the Dependa-Bar features pivot and lock technology allowing for 5 different positions (one every 45 degrees). The Dependa-Bar is intended for moderate vertical and horizontal load bearing to provide sitting and standing support for people with reduced mobility. The locking mechanism for the horizontal bar in welded to a horizontal grab bar, a castellated collar with 8 grooves (every 45 degrees) to provide a mechanism strong enough to support the user.

Dependa Grab Bar Highlights:

  • Pivot and Lock technology
  • Stainless steel construction
  • Ease of installation
  • Reversible
  • Versatile
  • Water resistant



Item # Desc Pkg Price
DB-18-PCW 18" (46cm), White Each
DB-18-SK 18" (46cm), Knurled Each

Features of HealthCraft Dependa Bar

  • Locks every 45 degrees (5 positions), providing a support rail that moves with user
  • Stainless steel construction provides an easy to clean, durable grab rail that can be safely exposed to water
  • Mounts securely to structural studs behind bathtub wall of any construction (fiberglass, plastic, tile wall, etc.)
  • Reversible, bottom grab bar can be mounted for either left or right side applications
  • Available in anti-microbial powder coat white and brushed stainless knurled finishes
  • Designed for bathing, toileting and other environments where falls can occur
  • Can be installed in the bathtub or beside the toilet
  • ADA Compliant, Fixed horizontal grab bar (1" dia) has 1" clearance from wall
  • Made from rust-resistant stainless steel
  • Dependa-Bar supports up to 325 lbs
  • Comes with 5 locking positions
  • Instruction Manual

Installation Instructions Of Dependa Bar

  • Determine locking positions of pivot rail, and fasten lower grab bar to wall in corresponding location.
  • Fasten the top flange to wall.
  • Slide pivot rail into top flange and rest into locking teeth on lower grab bar.
  • Install lift limit and secure with hex key.
  • Install vinyl cap to cover exposed locking teeth.


Particulars Specifications
Pivot Rail Diameter 1-1/4" (3.2cm) grip
Pivot Vertical Rail Height 33" (84cm)
Pivot Rail Length (from bathtub wall) 20" (51cm) and locks every 45° (5 positions)
Horizontal Grab Bar Diameter 1-1/4" (3.2cm)
Horizontal Grab Bar Length 18" (46cm)
Weight capacity 325 lbs


Limited Lifetime Warranty
