GivMohr Arm and Shoulder Subluxation Sling Features
- It protects the flaccid arm and shoulder joint
- Facilitates improved balance
- Facilitates improved gait\
- Improves activities of daily living
- It supports the head of Humerus in Glenoid
- Retraction and depression of the scapula
- Humerus held in near the neutral rotation
- It facilitates more symmetrical stride length and allows controlled arm swing
- Easy application by the user
- Elbow held in mild flexion
- An arm sling is washable
- It can be worn under clothing
When to use Arm Sling?
It is ideal for neurological diagnoses including:
- Stroke/CVA
- ALS
- Traumatic Brain Injury/TBI
- Brachial Plexis Injury
- Post Polio Syndrome
- Transverse Myelitis
- Central Cord Syndrome
What to buy with GivMohr Shoulder Slings?
How to use Arm Slings - GivMohr Sling?
Initial Fitting and Adjustment of GivMohr Sling:
- Orient sling on a flat surface with Blue Stripe (inside) up
- Place uninvolved arm through the shoulder loop
- Lay sling across back and drape anterior strap over-involved shoulder
- Position 4-Tab low on back between shoulder blades
- Position hand into Handpiece
- Locate Elbow Strap horizontally 1-1/2" below the elbow
- Adjust both straps at buckles to reduce subluxation
- Slide Axillary (Arm Pit) Pad to a comfortable position
- Reposition 4-Tab for optimum comfort and function
- Lock 4-Tab (recommended)
- Adjust Handpiece (if needed)
- Adjust posterior strap to bring shoulder into neutral rotation
- Givmohr Sling Donning Instructions

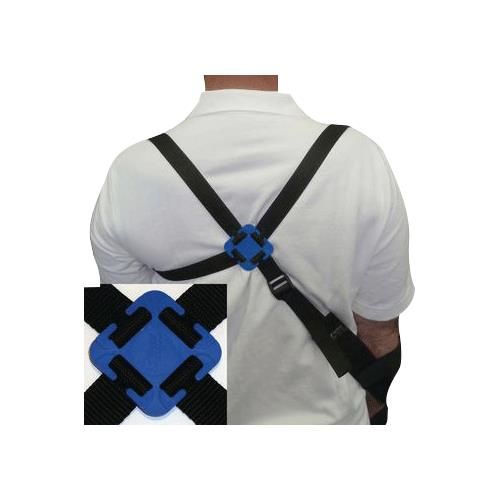

Locking the 4 Tab Buckle for Optimal Fit (Recommended):
- Correctly position the Sling
- Position the unlocked 4-Tab for optimum comfort and function. AVOID placing 4-Tab on base of the neck. Greater comfort is typically achieved with the 4-Tab located low on the back (about the level of the bottom of the shoulder blade).
- ALTERNATE POSITION: Locate the 4-Tab over the lower half of the shoulder blade of the involved shoulder. AVOID placement over any bony prominence.
- Lock the 4-Tab in place by snapping the webbing under the locking hooks on ALL 4 SIDES
- Re-check the overall fit of the GivMohr Sling and repeat if needed
How to Care for GivMohr Hemi Slings?
Donning Instructions:
Once fitted by a therapist with 4-Tab Buckle secured, no further adjustment should be needed.
- Orient sling on a flat surface with Blue Stripe (inside) up
- Place uninvolved arm through the shoulder loop
- Lay sling across the back and drape anterior strap over-involved shoulder
- Check 4-Tab Position and adjust if necessary
- Position hand into Handpiece and allow the arm to hang by the side
- Locate Elbow Strap horizontally 1-1/2" below elbow When doffing sling, remove the sling from elbow first
- Check Strap Positions and adjust at buckles to reduce subluxation if necessary
- Check Axillary (Arm Pit) Pad position and adjust for comfort if necessary
Washing and Care Instructions
- Hand wash in cold water
- Air dry
Note: To avoid damaging the sling, do not machine wash or dry
GivMohr Subluxation Slings Specifications
Note: If "Height Range" and "Weight Range" yield different results, look at where the user carries their weight to assist in determining the proper size sling to use. If the weight is carried higher on the body (chest/shoulders), give priority to the "Weight Range" result. If the weight is carried lower on the body (stomach/hips), give priority to the "Height Range" result.
| Size |
Height |
Weight |

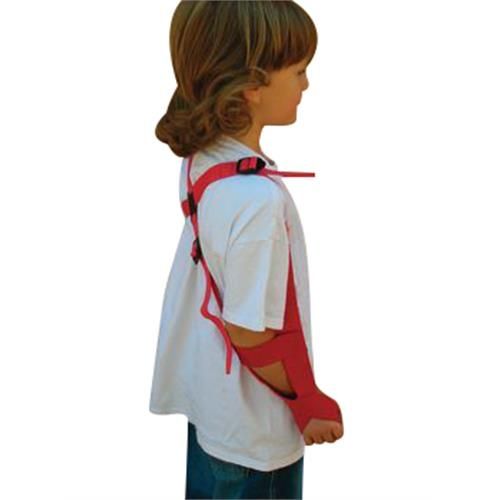

| Pediatric |
N/A |
45-70 lbs |
| X-Small |
Less than 5.0" (152 cm) |
80-100 lbs |
| Small |
5.0"-5.4" (152-163 cm) |
100-140 lbs |
| Medium |
5.3"-5.10" (160-178 cm) |
135-185 lbs |
| Large |
5.10"-6.4" (178-193 cm) |
180-235 lbs |
| X-Large |
over 6.4" (193 cm) |
Over 235 lbs |
