EZ-Access Suitcase Singlefold Advantage Series Ramp

EZ-Access Suitcase Singlefold Advantage Series Ramp

Brand/Manufacturer: EZ-ACCESS
Save
Authorized Retailer Badge
  • Made in USA

EZ-Access Suitcase Singlefold Advantage Series Ramp allow durable, dependable solutions to a variety of mobility and accessibility needs. This ultra-strong ramp provides the safety and strength required while remaining light and portable. It can be used as one unit or easily separated into two lightweight sections, making it even more convenient to use, carry, and store. It features an applied, slip-resistant surface and has 800-pound weight capacity.

Estimated Shipping Time: 5-7 business days

Item # Desc Pkg Price
SUITCASE SFAS02 2ft Each
$189.79
$145.99
SUITCASE SFAS03 3ft Each
$227.49
$174.99
SUITCASE SFAS04 4ft Each
$298.99
$229.99
SUITCASE SFAS05 5ft Each
$379.59
$291.99
SUITCASE SFAS06 6ft Each
$453.69
$348.99

Features

  • EZ-Access Suitcase Singlefold Advantage Series Ramp is made of welded aircraft-grade aluminum

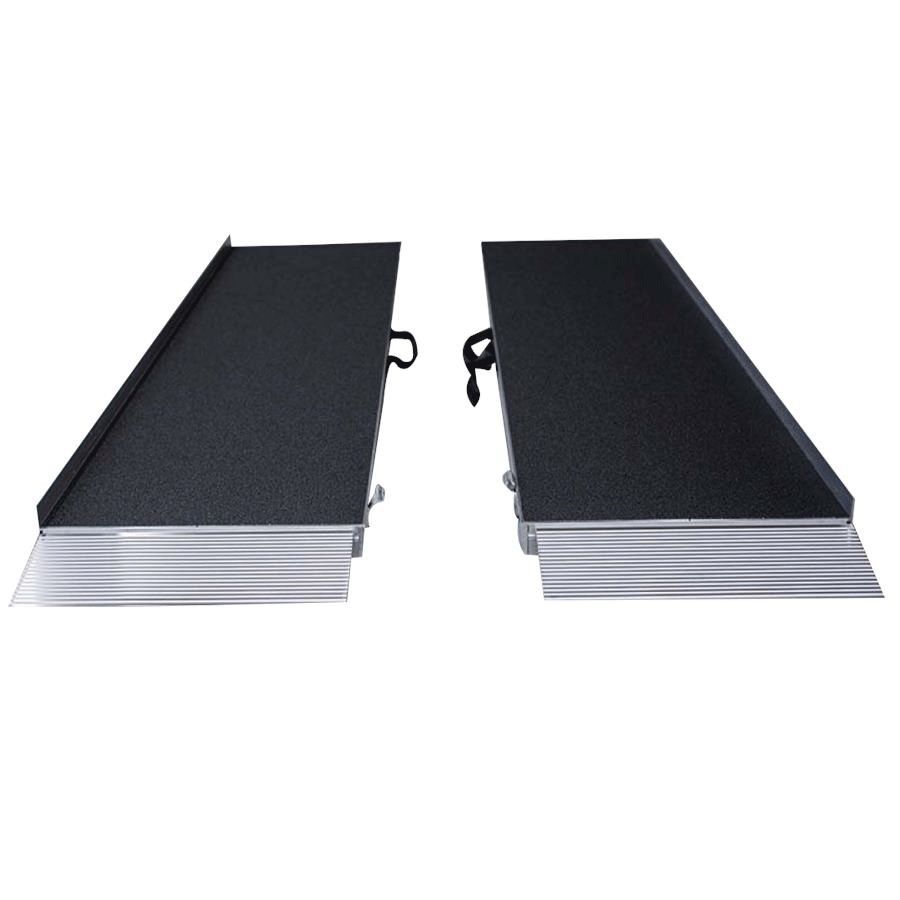

  • Ramp Hinge Separation:
    By simply removing the hinge pins, the Suitcase Singlefold AS Ramp separates into two easy-to-carry sections
  • Ergonomically Designed Handles:
    Easier to carry ergonomically designed handles are flexible, non-breakable, and offer ultimate comfort when carrying Suitcase ramp sections

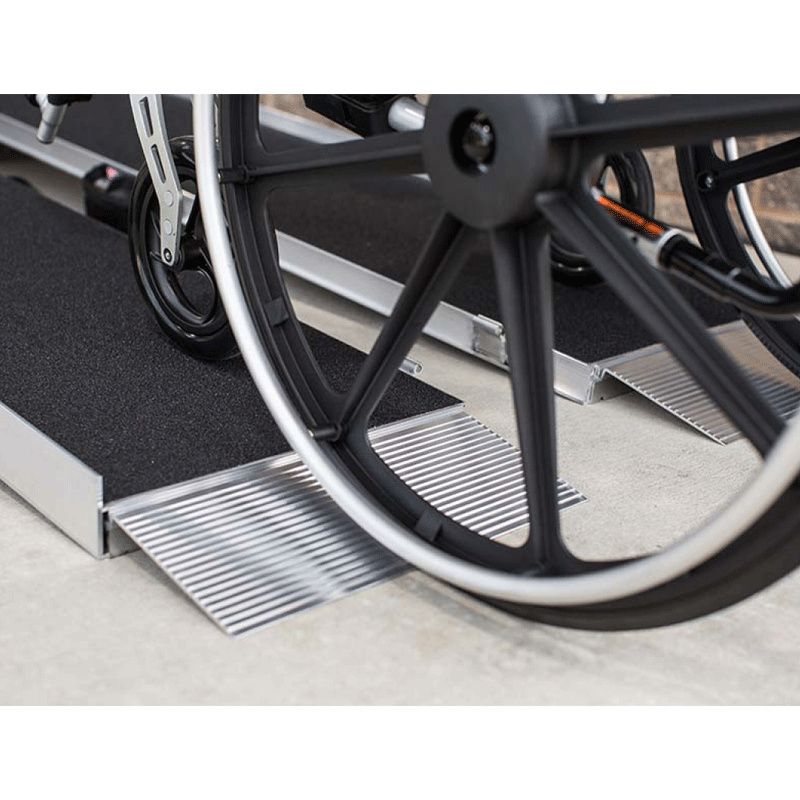

  • Self-adjusting Bottom Transition:
    To make conversion from portable ramp to ground, the Suitcase Singlefold AS Ramp offers self-adjusting bottom transition plates, which independently adjust to the ground surface
  • Features an applied skid-resistant tape with reflective safety stripes

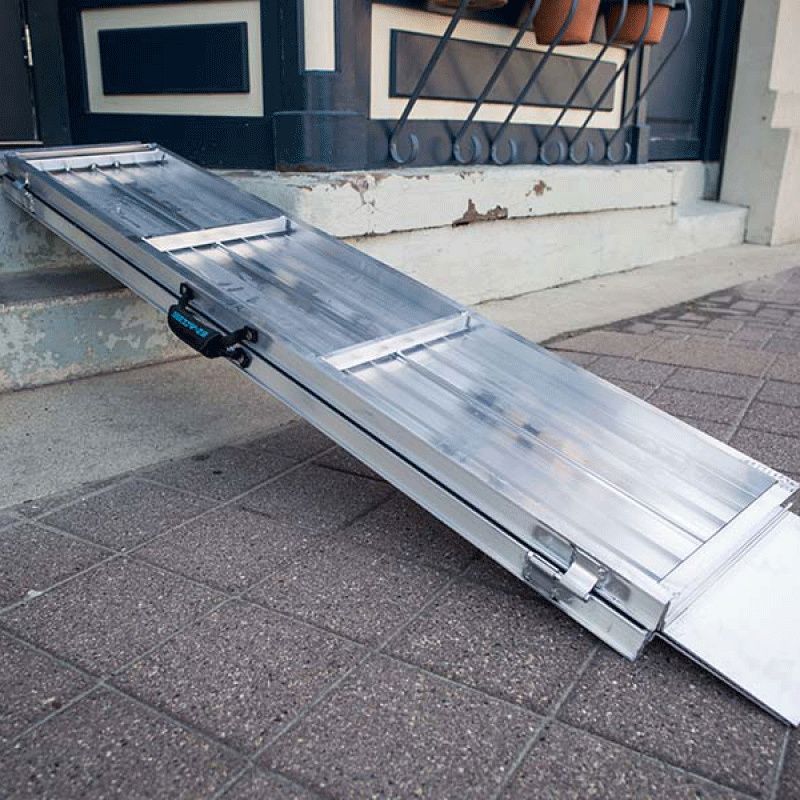

  • Folds in half to be carried like a suitcase
  • Unfolds to a 29" wide platform
  • Strong, safe, easy to carry
  • Non-skid surface
  • Click Here for Instruction Manual

More Information

  • Installation Instructions:
    1. Read and follow all instructions before use.
    2. Do not use if ramp is damaged or unstable.
    3. For wheelchairs and scooters only (not intended for commercial use).
    4. Ramp is shipped fully assembled. To separate ramp into two halves for easy stowage and transportation, remove bolts and install hinge pins as follows: Position the Ramp. Align hinges, then insert hinge pin into each hinge assembly and connect ramp sections together before use. Spring section of pin should be on the underside (non-treaded side) of ramp. Ramp may be separated for use when loading or unloading unoccupied mobility equipment only. When used with occupied mobility equipment, use ramp as one unit (ensure both halves are joined with hinge pins or bolts firmly installed before use).
    5. Place ramp on landing in the folded position, making sure that the top lip transition plate (labeled TOP) is resting securely on the landing.
    6. Unfold ramp and center on landing.
    7. For ease in carrying and stowage, ramp can be disconnected and carried in two sections. (When hinge pins are not in use, store in one side of hinge or on the underside of ramp by inserting into the gap behind the top I-beam).
  • Warnings:
    - Ensure top lip transition plate is secure before using ramp. We recommend attaching ramp temporarily to the landing using provided clevis pins (drill 1/4" hole in landing) or semi-permanently using screws through pre-drilled holes at the top of each section. To prevent ramp from becoming dislodged during use, make sure that the top lip transition plate overlaps the resting surface as far as possible.
    - The surface holding the top lip transition plate needs to be substantial and of sound construction.
    - Ramp may be slippery when wet or icy.
    - Use ramp only with a qualified helper and always use lap belt.
  • Safety and Maintenance:
    - Regularly check ramp for damage, and check and tighten any loose fasteners.
    - Keep ramp surface clear of ice, snow, dirt, leaves, and other debris.
    - For snow/ice, remove accumulation and sweep the surface clean.
    - To remove dirt, leaves, and other debris, sweeping the surface or using a garden hose will usually suffice, but, if needed, use a damp cloth or soft brush with non-alkaloid detergent and water.
    - Rinse well and use extra caution if ramp surface is wet.

Specification

Particulars

SUITCASE SFAS02 SUITCASE SFAS03 SUITCASE SFAS04 SUITCASE SFAS05 SUITCASE SFAS06
Usable Size

2ft x 29.5" 3ft x 29.5" 4ft x 29.5" 5ft x 29.5" 6ft x 29.5"
Folded Size 24"L x 15"W x 4.5"H 36"L x 15"W x 4.5"H 48"L x 15"W x 4.5"H 60"L x 15"W x 4.5"H 72"L x 15"W x 4.5"H
Weight 6lb each
(2 sections)
8lb each
(2 sections)
10lb each
(2 sections)
13lb each
(2 sections)
15lb each
(2 sections)
Weight Capacity 800lb 800lb 800lb 800lb 800lb
Usage Guidelines Curbs, 1 step Curbs, 1 step Curbs, 1 to 2 steps Curbs,
1 to 2 steps,
some minivans
1 to 3 steps, some minivans and SUVs
