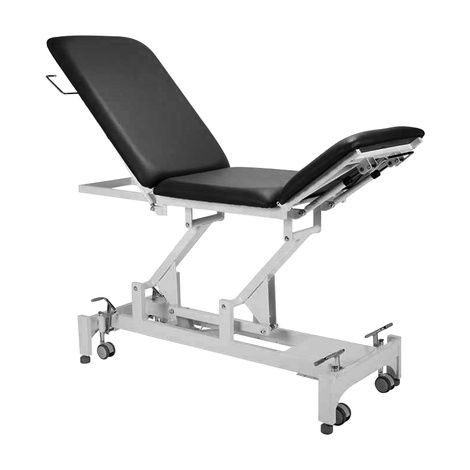

Everyway4all EU25 Tristar 3-Section Treatment Table

Everyway4all EU25 Tristar 3-Section Treatment Table

Brand/Manufacturer: EVERYWAY MEDICAL INSTRUMENTS
Authorized Retailer Badge

Everyway4all EU25 Tristar 3-Section Treatment Table which is altogether a different type of 3 Section Table. The leg section is further supported by a bracket frame underneath. due to this added support at the leg section, it cannot be dropped down like CA65 hence it is also called NO DROP FOOT 3 Section table. The advantage of No Drop Foot (End) is that the foot section is further supported a bracket frame for the added strength and reliability.

NOTE : Esitmated lead time 4 - 5 Weeks.

Item# EU25

  • ORDERING DETAILS
  • Total: $1999.99
    Total: $1799.99
Total: $1999.99
Total: $1799.99

Features of Everyway4all Treatment Table

  • Everyway4all EU25 Tristar 3-Section Treatment Table has retractable castors at both ends
  • 1 Motorized Actuator for Hi/Lo Adjutments
  • Twin oversized pillars with Dual-Side support for greater stability and support
  • Individual leveling foot on all 4 corners
  • Maximum load capacity: 225kgs (496lbs)
  • 100 to 240VAC (Universal Voltage)
  • Plug Type: US
  • Weight: 91kgs
  • User Manual

Specification

TECHNICAL SPECIFICATIONS
Minimum Height  460mm (18.11”)
Maximum Height 910mm (35.83”)
Table Top Width 700mm (27.56”)
Head Section Length 410mm 916.14”)
Mid Section Length 640mm (25.19”)
Leg Section Length 850mm (33.46”)
Total Length 1955mm (76.97”)
Head Tilt Angles -30º to +80º
Leg Tilt Angles 0º to +80º
Lift Mechanism Electric
Breathing Hole/Plug 1
Retractable Castors  4
Weight Rating (Max. Load) 225kgs (496lbs)
CONTAINER LOAD CAPACITY
20ft 28 tables
40ft 60 tables
40ft HQ 75 tables
ELECTRICAL DATA
Control Box Input Voltage andRating 100~240VAC, 50/60Hz, 2A
Control Box Output Voltage DC 32V, 80VA
Actuator Input Voltage DC 24V
Duty cycle Maximum 10% 2 minutes ON / 18 minutes OFF
Maximum Load Push 8000N
Maximum Current Max. 6A
