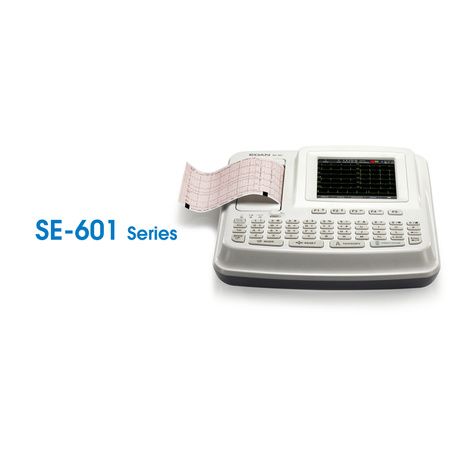

Edan SE-601 Series Six Channel ECG

Edan SE-601 Series Six Channel ECG

Brand/Manufacturer: EDAN INSTRUMENTS, INC
Authorized Retailer Badge
  • FSA Approved

This six-channel ECG machine has a portable, lightweight design. Features an easy data input and operation with the help of alphanumeric keyboard and one-touch operation. Includes an auto analyzing and diagnostic software for adults and pediatrics.

Item # Desc Pkg Price
SE-601A ECG with 3.5" Std. LCD Each
SE-601B ECG with 5.7" Std. LCD Each
SE-601C ECG with 5.7" TFT Color LCD Each


  • Built-in rechargeable battery, AC/DC power supply
  • Pacemaker detection which meet the requirements of ANSI/AAMI EC11
  • Two-step exercise test with periodic recording
  • Heart rate variability (HRV) analysis
  • Internal thermal printer and external printer
  • Support external archiving: USB flash disk, card reader
  • Data transmission to PC via ethernet or serial port

More Information

Optional Functions:

  • XML format export
  • Internal storage upgrade to 200 ECGs
  • Real-time data transfer to PC
  • GSM/GPRS wireless data transfer
  • External standard keyboard


 Model  SE- 601A  SE-601B  SE-601C
 Screen  3.5" STN LCD, 192*64 dots  5.7" STN LCD, 320*240 dots  5.7" TFT color LCD, 640*480 dots
 Internal speaker  Buzzer  Loudspeaker  Loudspeaker
 Interpretation  Yes  Yes  Yes
 Internal storage  50 ECGs  100 ECGs  100 ECGs
