Drive Timed Corded Patient Sensor Alarm Pads

Drive Timed Corded Patient Sensor Alarm Pads

Brand/Manufacturer: DRIVE MEDICAL
Authorized Retailer Badge
  • FSA Approved

Drive Timed Corded Patient Sensor Alarm Pads offer caregivers an efficient means of receiving notification when a resident is getting out of a chair or bed. When the sensor pad is connected to monitor alarm, the pad will trigger the alarm when weight is removed from the pressure pad itself. These are totally sealed and impervious to fluids. The weight-sensitive pressure pads are for use with PrimeGuard alarm monitors.

Item # Desc Pkg Price

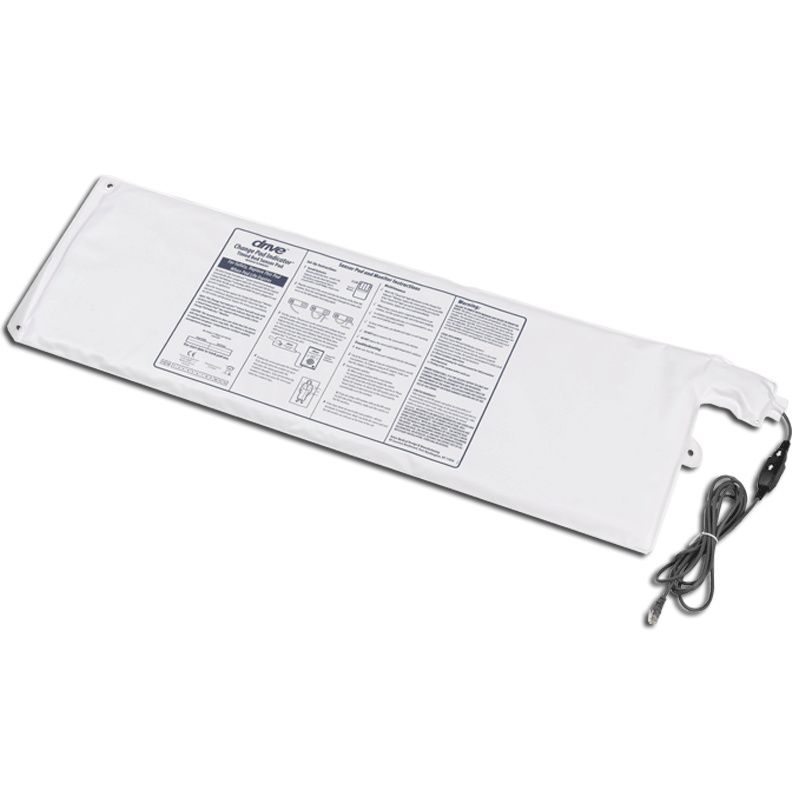

TBED-SP10X30 Bed Sensor Pad, 10"H x 30"W 5/Pack


  • Drive Timed Corded Patient Sensor Alarm Pads feature timed bed alarm sensor pads with unique SafeTRelease cords
  • No broken cords
  • Pad is placed under the resident while on the bed or seated on chair
  • Monitor alarms when resident gets up and pressure is released from the pad
  • Time-In-Use feature only operational with PrimeGuard Fall Monitor with timed change pad function
  • F-Tag compliant when used with timed pressure pads, automatically tracks the life of the sensor pad and alerts caregiver 10 days prior to pad expiration
  • Unique SafeTRelease cord guaranteed for life of bed sensor pad
  • Safe TRelease cord separates instead of breaking or pulling cord away from pad
  • Bed sensor pad cords can be replaced if broken

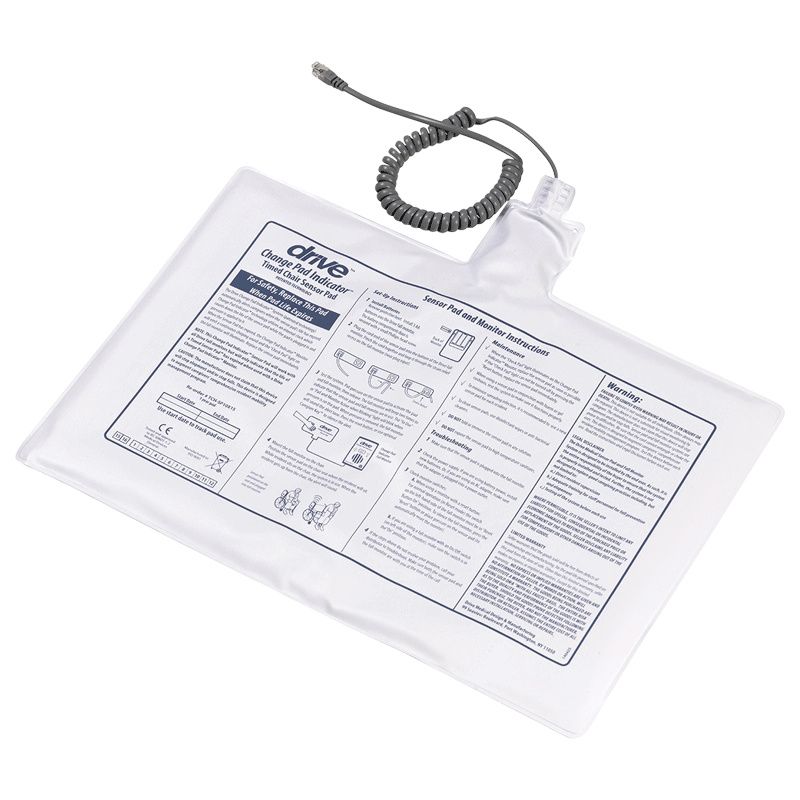

  • Timed chair sensor pads with coiled cords
  • Please click here for User Manual

More Information

  • Change Pad Indicator technology
    - Utilizes an internal clock which counts down the life of the sensor pad while the pad is plugged in and pressure is applied to it. When the sensor pad has expired, the change pad indicator monitor will emit a continuous chirping sound and the check pad light on the fall monitor will illuminate. Replace the sensor pad immediately
  • Caution
    - The manufacturer does not claim that this device will stop elopment and/or stop falls
    - This device is designed to augment caregivers comprehensive resident mobility management program
  • Set Up Instructions
    - Install Batteries Remove protective boot. Install 3 AA batteries into the Drivefall monitor. The battery compartment door is secured with a small Phillips-head screw
    - Plug the cord end of the sensor pad into the bottom of the Drive fall monitor. Pinch the cord together and loop it through the strain relief recess on the fall monitor (near plug input)
    - Test the system. Put pressure on the sensor pad to activate the pad and fall monitor, then release
    - The fall monitor will beep two times to indicate that the sensor pad and fall monitor are in use
    - The In Use or Pad and Monitor Active when Blinking light will blink when pressure is on the pad
    - When pressure is removed, the fall monitor will sound the alert tone. Press the reset button, or use optional Caregiver Key to silence the alert
    - Position the sensor pad under the resident
    - To be alerted when the resident sits up in bed, place the sensor pad under the residents shoulders
    - To be alerted when the resident vacates bed, place the sensor pad under the residents hips
  • Maintenance
    - When the Check Pad light illuminates on the Change Pad Indicator Monitor, replace the sensor pad as soon as possible
    - When using a sensor pad in conjunction with foam or gel cushions, test the system to make sure it functions properly
    - To minimize spreading infection, it is recommended to use a new sensor pad for each resident
    - To clean sensor pads, use disinfectant wipes or anti-bacterial cleaners
    - DO NOT fold or immerse the sensor pad in any solution
    - DO NOT expose the sensor pad to high temperature sanitizers
  • Warning
    - Failure to comply with warning may result in injury or death
    - This device is not suitable for all individuals. Other devices may be required
    - This device is not a substitute for visual monitoring by caregiver
    - The manufacturer does not claim that this device will stop elopement and/or stop falls




Weight8.3 oz
ColorWhite Pad With Printed Instructions


Weight3.4 oz
ColorWhite Pad With Printed Instructions


1 Year Warranty
