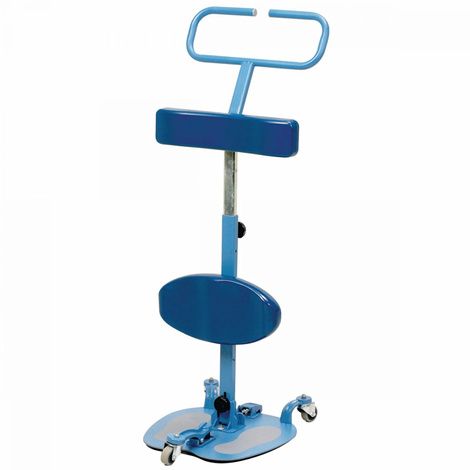

Days Orbi-Turn Patient Transfer System

Days Orbi-Turn Patient Transfer System

  • Free Shipping no minimum

Days Orbi-Turn Patient Transfer System is designed for caregivers to facilitate standing and seat to seat transfers while minimizing the risk of injury to themselves and the patient. It allows a client with moderate upper and lower limb strength to participate in functional transfers and ensure good working posture for therapists. The turntable effortlessly rotates through 360 degree for repositioning in even the most confined spaces.

Item # Desc Pkg Reward Price
81590769 Orbi-Turn Each $21.95
$877.95
$731.59

Days Orbi-Turn Patient Transfer System Features

  • Nonslip footprints to provide secure foot placement and show clients where to position feet
  • Overall height adjustment of 32" to 52" accommodates variety of patients
  • Height-adjustable and angled kneepad results in normal biomechanical hip and knee movement
  • Height-adjustable hand bar suits a range of clients
  • Thigh pad gives the patient a secure, supportive contact point for increased stability and comfort during transfers
  • Easy-to-operate foot brake prevents rotation and over-compensating on balance during sit-to-stand movement
  • Two rear casters provide easy transport from client to client
  • Front-mounted sprung caster assists in positioning of the Orbi-Turn once the clients feet are in place
  • Folds flat for easy portability and storage
  • Steel frame ensures durability and strength

Days Orbi-Turn Patient Transfer System Instruction Manual

Days Orbi-Turn Patient Transfer System Instruction Manual

How to Assemble Orbi-Turn Transfer System?

To assemble the column to the base:
  • Identify the parts and lay the base on the floor so that it rests on the three castors.
  • Unscrew and remove the nut and washer from the bolt with sleeve.
  • Put the column into the base bracket so the slot and folding handwheel is in the lower front position.
  • Line up the cross hole in the column tube with the hole in the angle bracket and push the bolt and sleeve through both parts. With the bolt with sleeve in place, replace the washer and nut and tighten them fully with the tools provided.
  • Loosen the folding mechanism handwheel and raise the column into the vertical position. The folding handwheel will drop into the front slot of the base bracket. Tighten the folding handwheel to secure the column in place.
To assemble the knee pad:
  • Remove the handwheel at the top of the column.
  • Slide the U shaped bracket over the column ensuring the rubber ferrule is at the bottom and the knee pad is facing forwards.
  • Once the knee pad is at the desired height, tighten the knee pad handwheel to secure it in place. Replace the handwheel at the top of the column.
To assemble the handle bar:
  • Press in the bullet catch that protrudes from the bottom of the handle tube.
  • Slide the handle tube into the main column tube. The bullet catch will engage in the hole in the side of the main column tube. Please Note: the handle should not be extended beyond this point during use.
  • Press the bullet catch in and lower the handle to the desired height. Holes in the handle tube provide a positive location for the handwheel. Ensure the handwheel is in a hole and tighten to secure the handle.
To fold the Orbi-Turn:
  • Loosen the folding mechanism handwheel.
  • Raise the handwheel to allow it to clear the base bracket.
  • Lower the column and handle to the floor.
  • To return the handle and column to the upright position, raise the column into the vertical position. The folding handwheel will drop into the front slot of the base bracket. Tighten the folding handwheel to secure the column in place.

Cleaning and Maintenance Instructions:
  • Inspect the turner before each use to ensure that it is free from damage and excessive wear. Look particularly for dents, cracks, loose parts or other damage that may affect the integrity of the product
  • It is recommended that surfaces are wiped clean using a wet cloth with a mild detergent or disinfectant. Ensure that the unit is dry before use.

Orbi-Turn Patient Transfer System Specifications

Particulars

Specifications

Unit Weight

15kg

Base Diameter

400mm

Bottom Handle

Lower Position

815mm

Highest Position

1175mm

Top Handle

Lower Position

920mm

Highest Position

1315mm

Kneepad (Mid Point)

Lower Position

235mm

Highest Position

510mm

Weight Capacity

190kg
