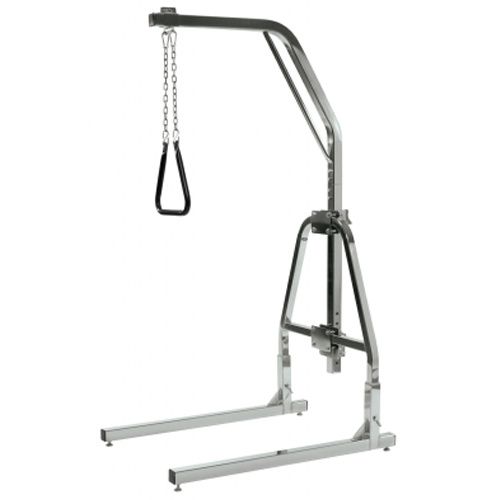

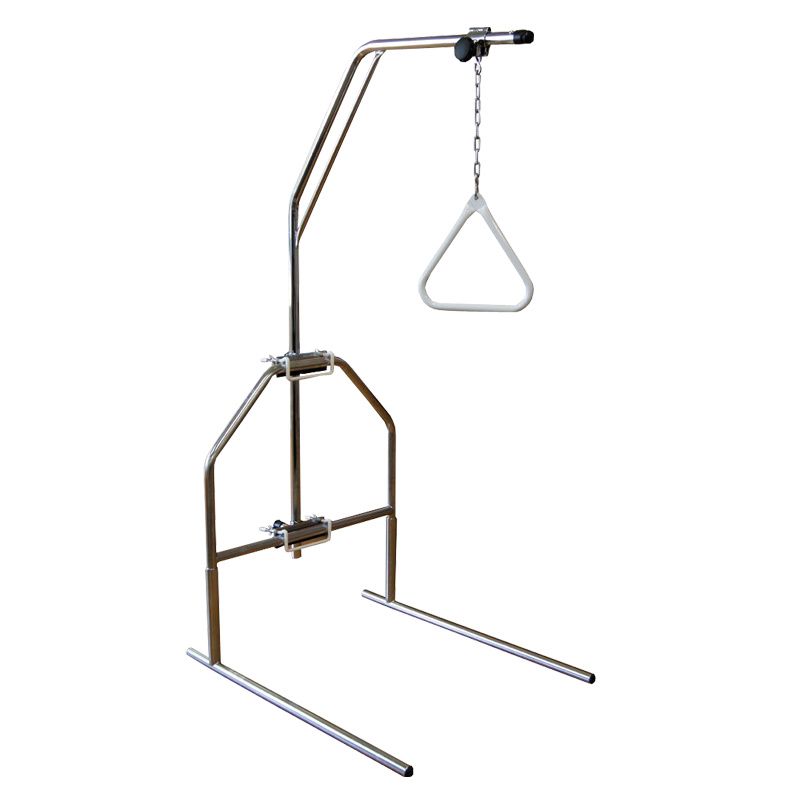

Graham Field Bariatric Trapeze

Graham Field Bariatric Trapeze

  • Made in USA

Graham Field Bariatric Trapeze helps the patient safely change position in bed and transfer from bed to other equipment with minimal assistance. This Trapeze is ideal for heavier patients. In addition to providing maximum support and comfort, this innovative, heavy-duty design features rubber bumper guards to protect walls. The handbar location is fully adjustable and the trapeze is height adjustable that comes with floor stand.

Graham Field Bariatric Trapeze comes with:

  • Trapeze bar
  • Handbar
  • Floor stand


 WARNING: Cancer and Reproductive Harm -


Graham Field Bariatric Trapeze Features

  • Comes with rubber bumper guards to protect walls
  • Handbar location fully adjustable
  • Comes with floor stand
  • Only 14mm wrench required for assembly
  • Bariatric Trapeze 2960B is intended to assist in repositioning oneself in bed

Graham Field Bariatric Trapeze Instruction Manual

How To operate Graham Field Bariatric Trapeze?

Trapeze Operation:

  • Before use, ensure that trapeze is correctly and securely assembled, and that all clamps are tight
  • Bariatric Trapeze is intended to be used only as an assistive device - that is, to enable patients to more easily and safely reposition themselves. It is not intended to bear entire body weight

Maintenance And Cleaning:

  • During use, ensure trapeze components are securely fastened at all times.
  • Cleaning: Use a soft cloth, dampened with water and a mild NON-ABRASIVE detergent (household cleaner, soapy water, or hospital grade disinfectant), to clean the trapeze.


  • Read and understand these instructions before installing or using the 2940B/2960B Bariatric Trapeze. Ensure that the Bariatric Trapeze is installed as described in the following paragraphs before use. If the Bariatric Trapeze is not properly installed, personal injury and/or property damage could result.
  • The fixed trapeze when used in conjunction with a bed can assist an individual weighing up to 450lbs.
  • The fixed trapeze is designed to provide support, increase stability, and assist the user when repositioning himself/herself in bed. The fixed trapeze is not designed, however, to support the total body weight of an individual. Use it for assistance only.
  • Do not use this product without proper instruction from a healthcare professional.
  • GF Health Products, Inc. assumes no responsibility for any damage or injury caused by improper installation, assembly or use of this product.
  • If components are damaged or missing, contact your Graham-Field Health Products dealer immediately. Do not use substitute parts.
  • Ensure that trapeze is correctly and securely assembled that bracket is secure, and that trapeze arm and post bolts are secure, before proceeding.


Graham Field Bariatric Trapeze Specification



  2940B 2960B
Assisted Weight Capacity 450 lb  600 lb
Overall Height (including fixed bracket) 76 7/8" 80 5/8"
Outside Base Width 28 7 /8" 29 1 /4"
Width Between Base Legs 27" 25 1 /4"
Base Length 40 1 /2" 41"


Three year limited warranty
