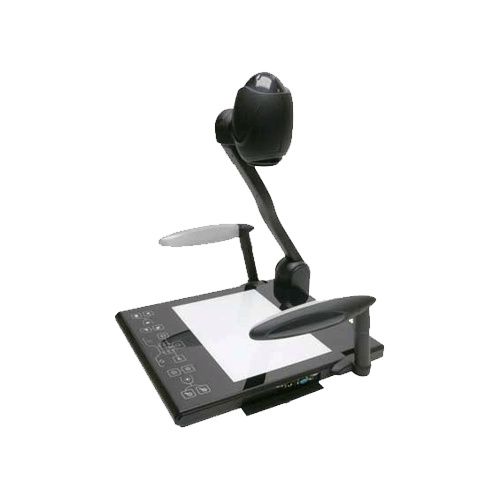

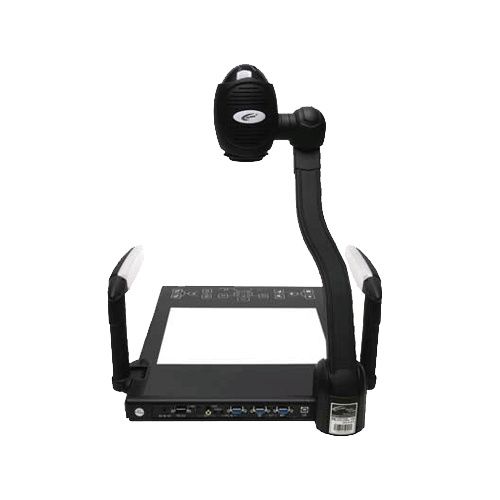

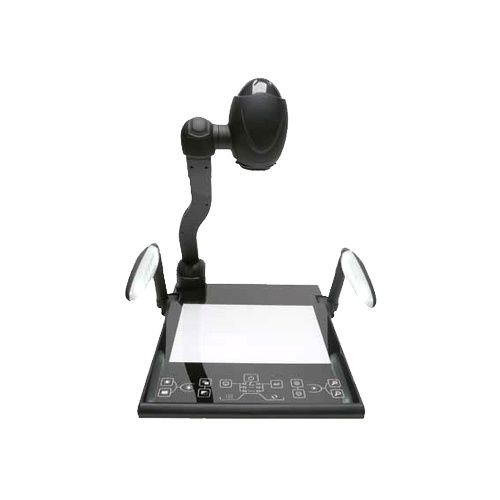

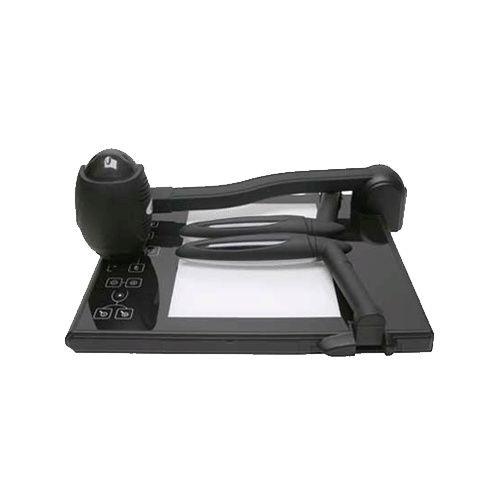

Califone Diggiditto Smart Document Camera With CMOS Image Sensor

Califone Diggiditto Smart Document Camera With CMOS Image Sensor


Califone Diggiditto Smart Document Camera With CMOS Image Sensor provides a fully featured choice coupled with durability and innovation. It can be used in conjunction with material already prepared on a computer to shift back and forth between the two to explain concepts, regardless of the discipline. Also can be used for displaying textbook pages, student work, and lots more.






  • Califone Diggiditto Smart Document Camera has ability to save infinite pictures via USB
  • Built-in full size lightbox (8.5" x 11") which allows for the full display of negatives, x-rays, and transparencies
  • Offering 12x optical zoom, three light modes, an annotation feature a remote control
  • Delivers all of the audio or visual controls, had expect from a flatbed document camera
  • Multiple inputs and outputs on the rear and side to easily connect with multiple devices
  • Fully rotating camera head with built-in infrared receiver from the remote control
  • USB connection for computer compatability and can be then projected onto a screen, TV, electronic whiteboard or PDP screen in real time
  • Dual LED lights for full illumination from above
  • For video, please click here


Particular Dimensions
Image Pickup Device 1/3 in CMOS image sensor
Total Pixels 1,300,000 pixels
Frame Rate 20 fps
Resolution RGB Ouput: XGA 1024x768,
SVGA 800x600 @ 60 Hz
Video Output: 550 TV lines
Lens F= 1.6 ~ 3.7, f = 3.9 ~ 85.8mm
Zoom 12X optical, 8X digital
Shooting Area Maximum: 13.5" x 10.6"
Minimum: 0.1" x 0.1"
Brightness Adjustment Manual
Focus Auto/Manual
S-Video, Composite Video Output PAL and NTSC compatible
Control Functions
Images side-by-side comparison Manual
Image Mirror Manual
Text/dynamic mode switch Manual
White Balance Auto/manual
Positive/Negative Manual
Color Adjustment Manual
Black & White / Color Conversion Manual
Image Save Manual
Image Freeze Manual
Internal Image Capture 12 pictures
Multi-View 4 images displayed at once, 3 screens
Playback Individual or multi-view
Power supply 12V DC power adapter (220volt capable)
Maximum Power Use 20 W
Light source
Upper LED
Base LED; platform dimensions 8.75" x 12.24"
Input Interface
Audio 2 inputs, <2.0 Vp -- p
Video 2 inputs, <1.0 Vp -- p/75O
VGA PC 2 inputs
Microphone 1 input provided
Output Interface
Audio 1 output, <2 Vp -- p
Video 1 output, <1.0Vp -- p/75O
VG PC 2 outputs
Video Output RGBHV
S-Video 1 output
USB 1 output
Packing Case 18.7"W x 17.1"D x 9.3"H
Folded 15.7"W x 16.7"D x 6.5"H
Set Up 21.3"W x 16.7"D x 22.8"
Included Accessories Remote Control, Software CD, User Manual, USB Cable, RS232 Cable, VGA Cable
Operating System Windows 2000 / XP / Vista /
Windows 7 32-bit & 64-bit
Compliance FCC, CE, RoHS
Weight 12.54lb
