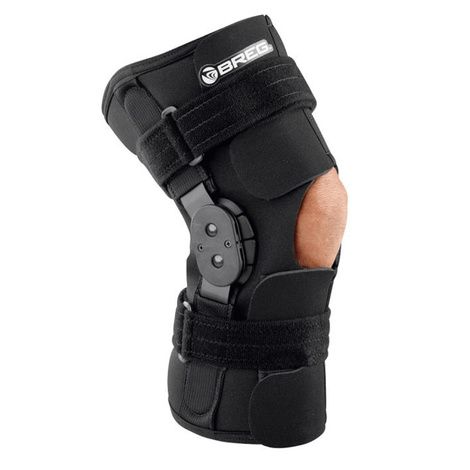

Breg ShortRunner Neoprene Knee Brace

How to Use ShortRunner Neoprene Knee Brace?

Application Instructions For Knee Braces:

• The wrap-on brace is applied with the closures in the front of the leg and the kneecap cutout centered over the knee. Secure the closures firmly
• The slip-on brace is applied by pulling the brace on with the kneecap cutout centered over the knee
• Both the wrap-on and pull-on braces have tightening straps. The straps should be tightened firmly, starting with the two straps closest to the knee.


Adjustment Instructions:

• Polycentric hinge with stops:
  • Both flexion and extension stops are supplied with the brace.The brace comes with a 10° extension stop already installed. The stops are labeled in degrees as follows:
    • Extension Stops:0°, 10°, 20°, 30° & 40°
    • Flexion Stops:45°, 60°, 75° & 90°(no flexion stops are installed upon shipment)
  • To change the stops, first, completely remove the screw as shown. Then remove the stop. Insert the new stop, align with the holes in the hinge, then reinsert the screw.
  • Using a Phillips head screw driver, ensure that the screws are seated in the recess and completely tightened.
  • Both medial (inside) and lateral (outside) hinge stops must be identical in degree.
  • NOTE: Due to soft tissue compression, we recommend the use of extension stops at least 10° greater than the desired limit. (e.g., if you desire a 10° extension limit, use the 20° extension stop).
• Polycentric hinge with pins:
  • The hinge settings are labeled in degrees as follows:
    • Extension settings: 0°, 10°, 30°, 50°, 70°, 90° & 110°
    • Flexion settings: 0°, 10°, 30°, 50°, 70°, 90° & 110°
  • To change the settings, first, open the hinge cover.
  • Then, move the pins to the desired extension and/or flexion settings for both the upper and lower leg.
  • When satisfied, close the hinge cover. Both medial (inside) and lateral(outside) hinge settings must be identical in degree.
  • NOTE: Due to soft tissue compression, we recommend the use of extension stops at least 10° greater than the desired limit. (e.g., if you desire a 10° extension limit, use the 20°extension stop).


Tips on Use and Care of Knee Brace:

• After exposure to salt water or dirt, thoroughly rinse the brace with fresh water and allow to air dry.
• A dry lubricant, such as Teflon spray, may be used on the hinge occasionally. Do not use wet lubricants.
• The hinge assemblies may be removed to allow easier washing of the sleeve and straps.
• The side bars may be bent to accommodate individual legs. Bend in equal amounts above and below the hinge.
• Periodically inspect the sleeve, straps, and hinges for excessive wear. Be sure all screws are tight and stop in place.


Caution:

• For single patient use only.
• If you experience increased pain, swelling, or any adverse reactions while using this product, immediately consult your medical professional.


Warnings:

• This device will not prevent or reduce all injuries.
• Proper rehabilitation and activity modification are also an essential part of a safe treatment program


Breg ShortRunner Soft Knee Brace Specifications
